| ROTORS | ||||||||
|---|---|---|---|---|---|---|---|---|
| CODE | DESCRIPTION | A | B | C | D | E | F | |
| Standard rotors | ||||||||
| 210R098 | (no cone) | 11.00mm | 9.75mm | - | - | - | - |  |
| 210R426 | MF2/4 | 13.40mm | 9.75mm | 3.0° | - | - | 10.50mm |  |
| 210R407 | Flandria 127 | 13.50mm | 11.00mm | 3.0° | - | - | - | |
| 210R234 | MBK | 14.95mm | 9.75mm | 3.0° | - | - | 12.10mm | |
| 210R323 | Garelli | 12.75mm | 9.75mm | 4.0° | - | - | 8.00mm | |
| 210R149 | KS80 | 16.85mm | 9.75mm | 4.0° | - | - | 13.10mm | |
| 210R275 | Camino | 16.9mm | 9.75mm | 5.7° | - | - | 11.3mm | |
| 210R278 | Sachs | 17.15mm | 9.75mm | 4.0° | - | - | 13.20mm | |
| 210R357 | Husqvarna 430 | 18.30mm | 9.75mm | 4.0° | - | - | 14.10mm | |
| 210R281 | Husqvarna 250 | 18.80mm | 9.75mm | 4.0° | - | - | 15.00mm | |
| 210R283 | KTM | 19.50mm | 9.75mm | 4.0° | - | - | 15.90mm | |
| 210R170 | Maico 3 welle | 20.70mm | 9.75mm | 4.0° | - | - | 16.6mm | |
| 210R417 | Aprilia | 21.50mm | 9.75mm | 4.0° | - | - | - | |
| 210R345 | Morini M1 | 12.70mm | 9.75mm | 5.7° | - | - | - | |
| 210R347 | Garelli NOI | 13.10mm | 9.75mm | 5.7° | - | - | 8.00mm | |
| 210R030 | Wallaroo | 13.65mm | 18.45mm | 5.7° | - | - | - | |
| 210R260 | Minarelli v1 | 14.45mm | 9.75mm | 5.7° | - | - | - | |
| 210R276 | Fox | 15.50mm | 12.75mm | 5.7° | - | - | - | |
| 210R034 | Puch Maxi | 16.00mm | 9.75mm | 5.7° | - | - | 10.70mm | |
| 210R031 | Piaggio | 16.00mm | 17.00mm | 5.7° | - | - | - | |
| 210R218 | Ciao | 16.20mm | 9.75mm | 5.7° | - | - | - | |
| 210R277 | FS1 | 16.90mm | 9.75mm | 5.7° | - | - | 10.00mm | |
| 210R142 | XR75 | 16.90mm | 9.75mm | 5.7° | 8.00m | 17.10 | 10.00mm |  |
| 210R036 | Suzuki | 17.80mm | 9.75mm | 5.7° | - | - | 12.40mm | |
| 210R037 | RD250 AC | 18.85mm | 9.75mm | 5.7° | - | - | 13.70mm | |
| 210R279 | CR250 | 19.35mm | 9.75mm | 5.7° | - | - | 14.00mm | |
| 210R396 | Pitbike | 20.20mm | 9,75mm | 5.7° | - | - | 15.00mm | |
| 210R035 | NSR | 20.50mm | 9.75mm | 5.7° | - | - | 15.00mm | |
| 210R078 | Aprilia RS | 20.75mm | 9.75mm | 5.7° | - | - | 16.75mm | |
| 210R443 | 5,7/21,60 | 21.60mm | 9.75mm | 5.7° | - | - | 16.25mm | |
| Heavy weight rotors (+1000g) | ||||||||
| 210R411 | No cone | 11.00mm | - | - | - | - | - |  |
| 210R317 | Montesa | 21.85mm | 37.00mm | 3.0° | - | - | 17.80mm |  |
| 210R350 | CZ360 | 24.50mm | 24.75mm | -3.0 | - | - | - |  |
| 210R412 | Husqvarna 390 | 24,00mm | - | 4.0° | - | - | - |  |
| 210R413 | Ducati MK3 | 25.00mm | 21.00mm | 5.5° | - | - | - | |
| 210R415 | Rotax 244 (inversed cone) | 24.00mm | 25.00mm | -4.0 | - | - | - | |
| Special heavy weight rotors | ||||||||

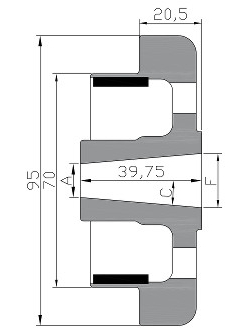

| 210R463 | CZ - inversed cone | 16.00mm | - | -3.0 | - | - | 20.00mm |  |
| Threaded heavy weight rotors | ||||||||
| 210R461 | No cone - threaded | 11.00mm | - | - | - | - | - |  |
| 210R313 | SM51 | 17.80mm | 9.75mm | 3.0° | - | - | 15.30mm |  |
| 210R462 | No cone - threaded - fan mount | 11.00mm | - | - | - | - | - |  |
| STATORS | ||
|---|---|---|
| CODE | DESCRIPTION | |
| 210S190B | 180° | Ø90 | high (Black) |  |

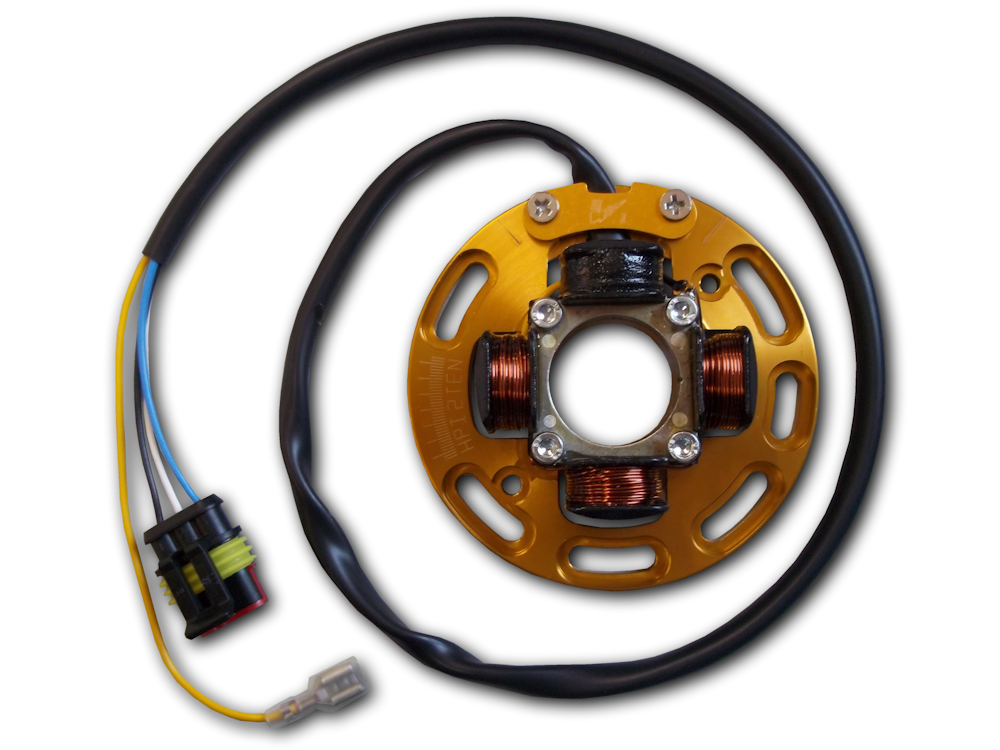

| 210S190G | 180° | Ø90 | high (Golden) |  |
| 210S190R | 180° | Ø90 | high(Red) |  |
| 210S464B | 180° | Ø90 |upside down mount (Black) |  |
| 210S194B | 180° | Ø94 | high(Black) |  |
| 210S194G | 180° | Ø94 | high(Golden) |  |
| 210S194R | 180° | Ø94 | high(Red) |  |

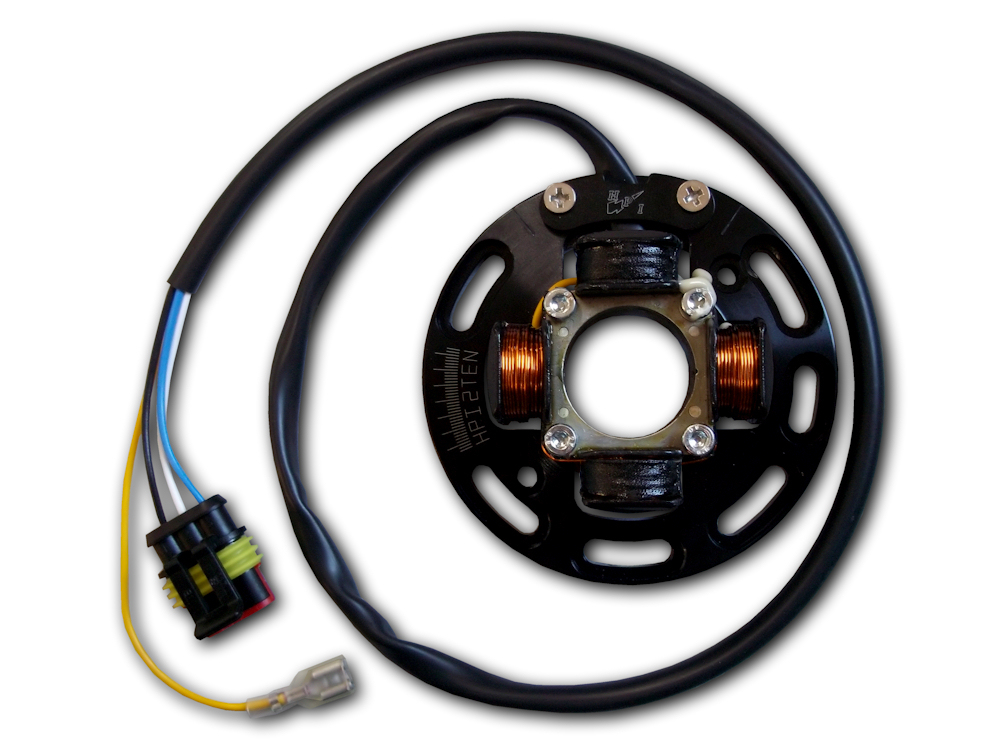

| 210S205B | 180° | Ø94 | high | double coil(Black) |  |
| 210S273B | 180° | Ciao (Black) |  |
| 210S271B | 180° | Ø80 (Black) |  |
| 210S272B | 180° | Ø82 (Black) |  |

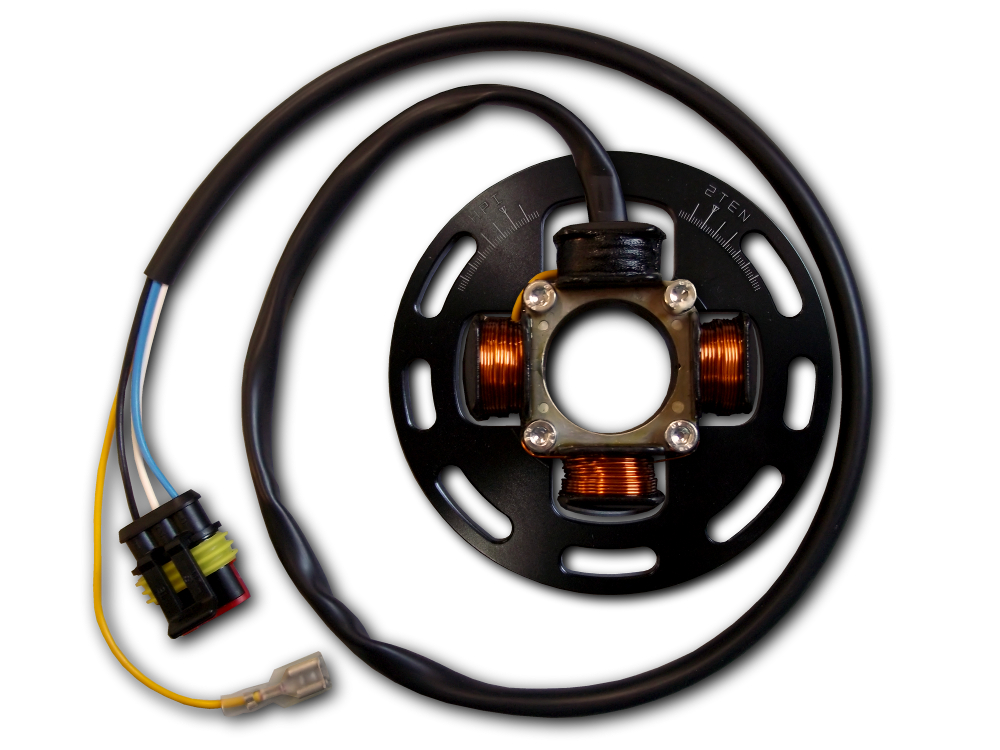

| 210S252B | 180° | Ø90 |low (Black) |  |
| 210S253B | 180° | Ø94 |low (Black) |  |
| 210S430B | 180° | Ø94 |Ducati narrow case (Black) |  |
| 210S431 | 180° | Ø106 |Ducati wide case (Grey) |  |
| 210S254B | 180° | Ø108 |low (Black) |  |
| 210S255 | 180° | Ø110 |low (Black) |  |

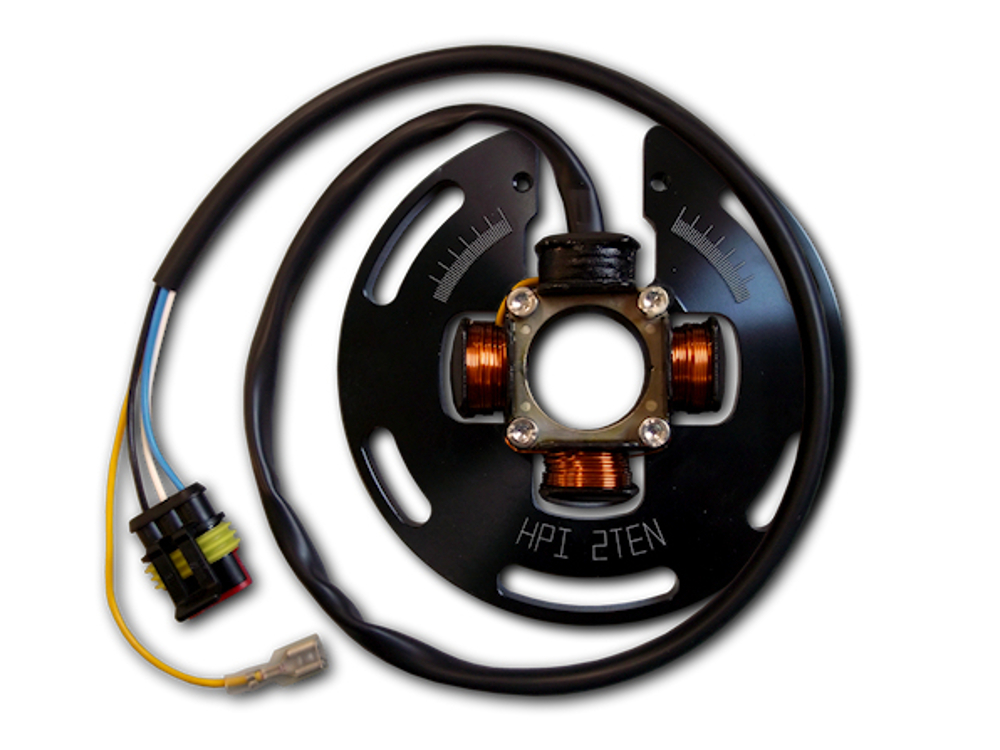

| 210S307B | 180° | Ø110 |SEM (Black) |  |
| 210S440B | 180° | Ø110 |SEM |double coil (Black) |  |
| 210S460B | 180° | Ø110 |KTM low double coil (Black) |  |

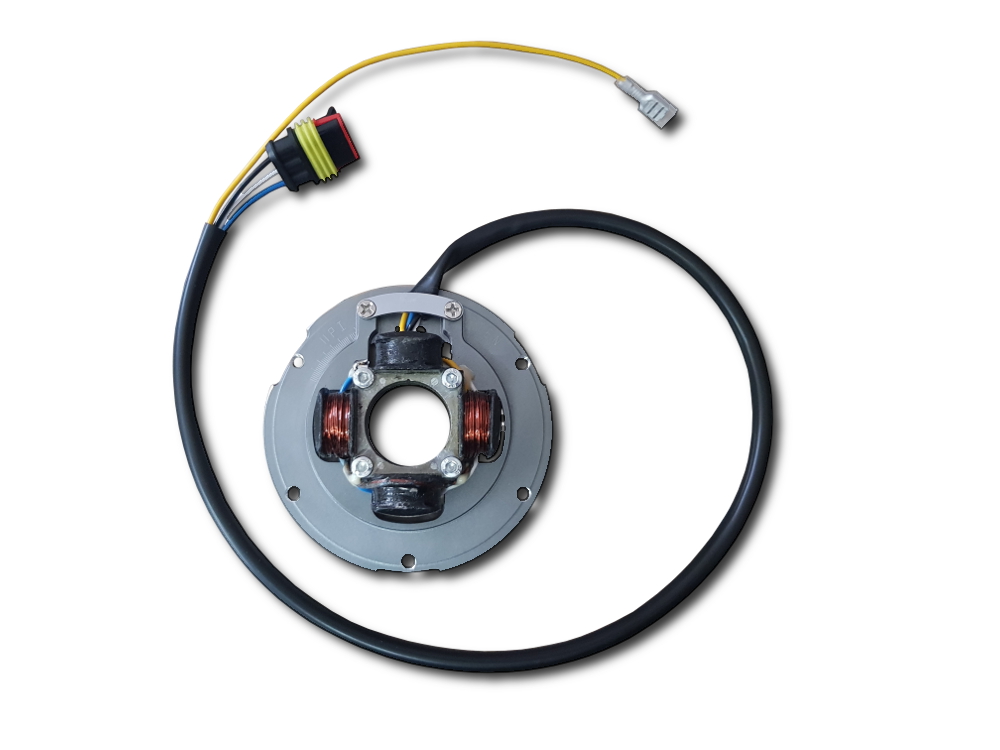

| 210S348 | 180° | CZ360 (Grey) |  |
| 210S264 | 180° | Vespa PK (Grey) |  |

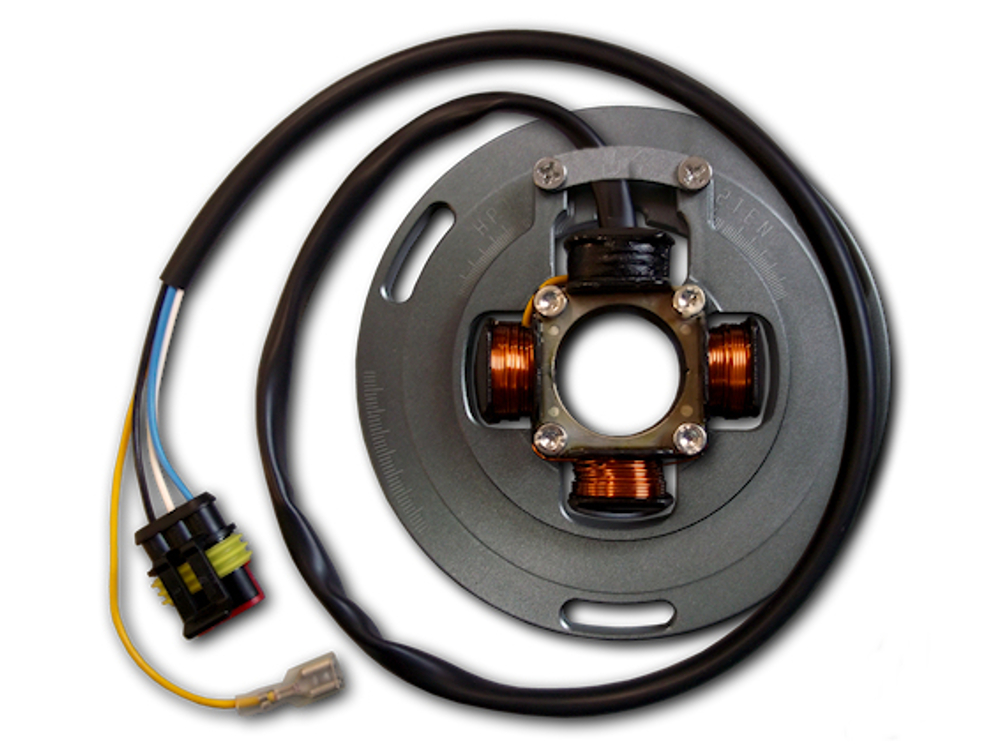

| 210S263 | 180° | Vespa PX (Grey) |  |
| 210S441 | 180° | Honda CR (Red) |  |
| CDI-UNITS (Click a CDI to see the available options) | ||||
|---|---|---|---|---|
| CODE | DESCRIPTION | |||
| 210C130 | Analogue CDI - Curve 130 |  | ||
| 210C042 | Digital CDI - 2 stroke |  | ||

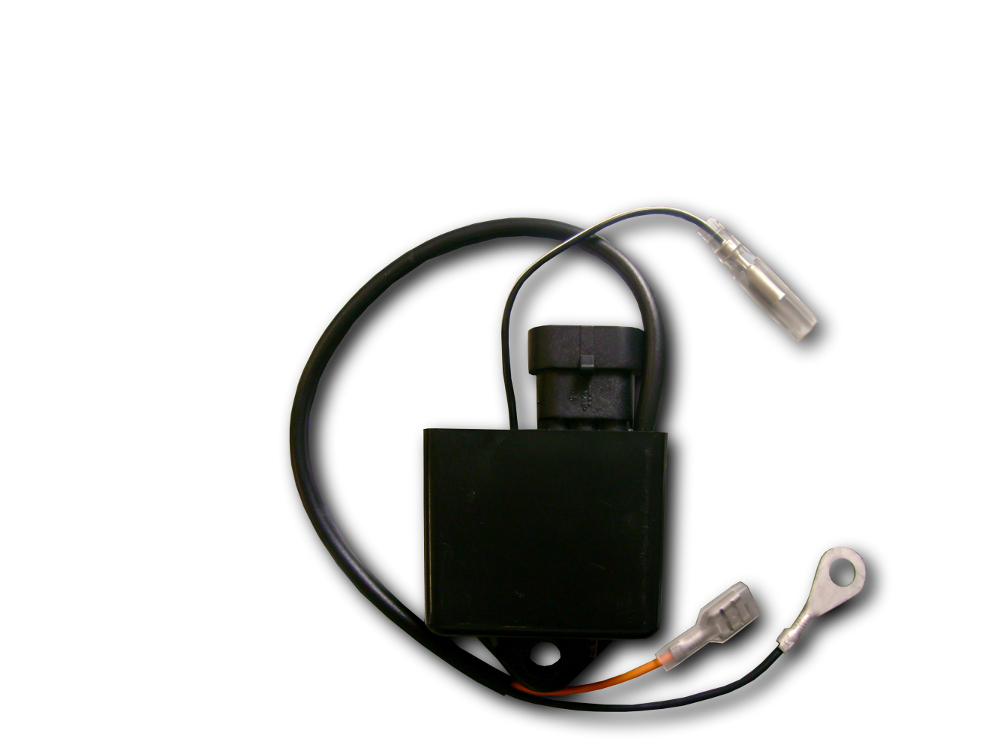

| 210C041 | Digital CDI - 4 stroke |  | ||

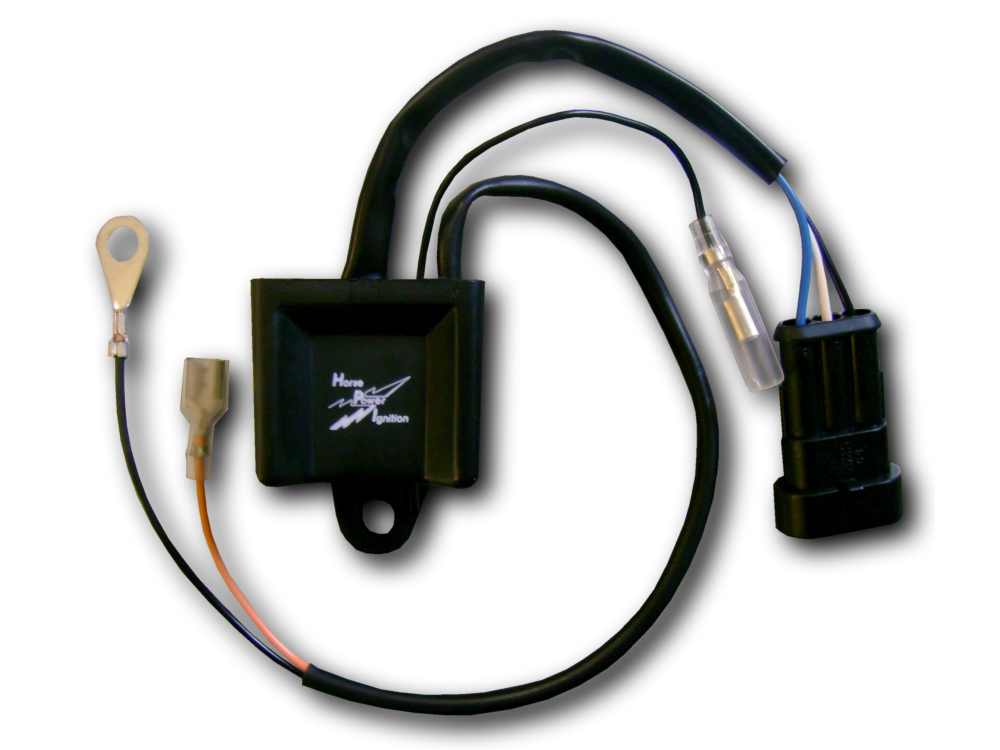

| 210C160 | Analogue CDI - Curve 130 - wire loom |  | ||
| BASEPLATES | ||
|---|---|---|
| CODE | DESCRIPTION | |
| 210B175 | Camino |  |
| 210B447 | CB |  |
| 210B465 | CZ twin pipe |  |
| 210B091 | CR250R |  |
| 210B358 | Husqvarna |  |

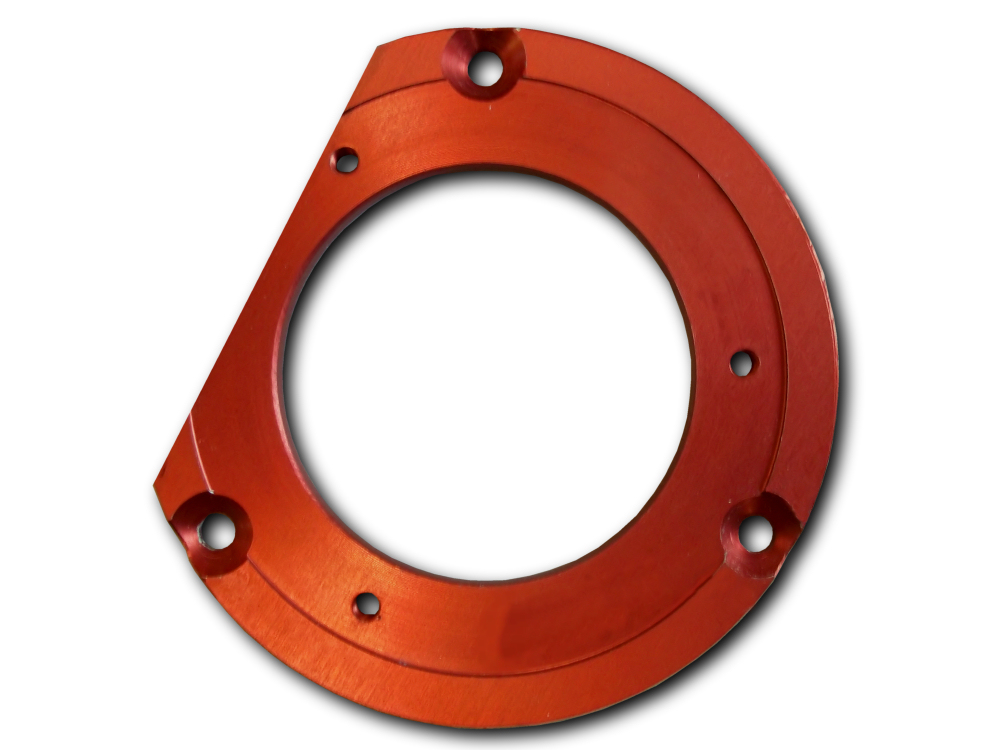

| 210B243 | KTM 65SX |  |

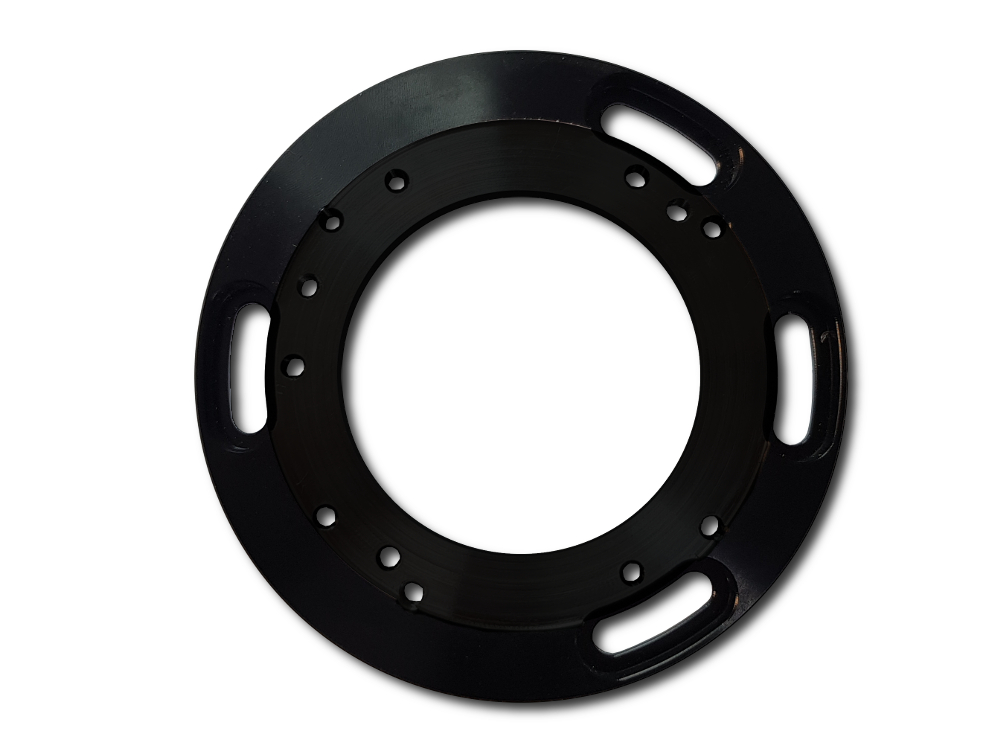

| 210B120 | KX125 (Ø115) |  |

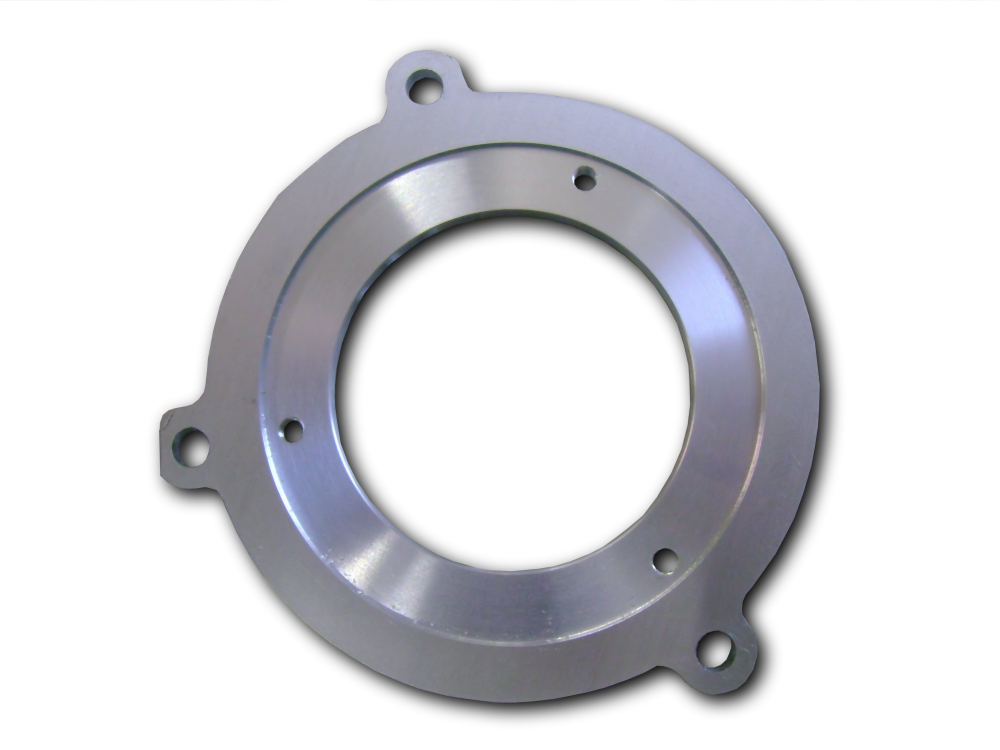

| 210B169 | Maico High |  |
| 210B409 | Maico Low |  |
| 210B275 | MBK |  |
| 210B019 | Minarelli |  |
| 210B334 | Minarelli Low |  |
| 210B074 | Morini 50 (Wallaroo + bus) |  |
| 210B239 | Morini 175 |  |
| 210B018 | NSR |  |

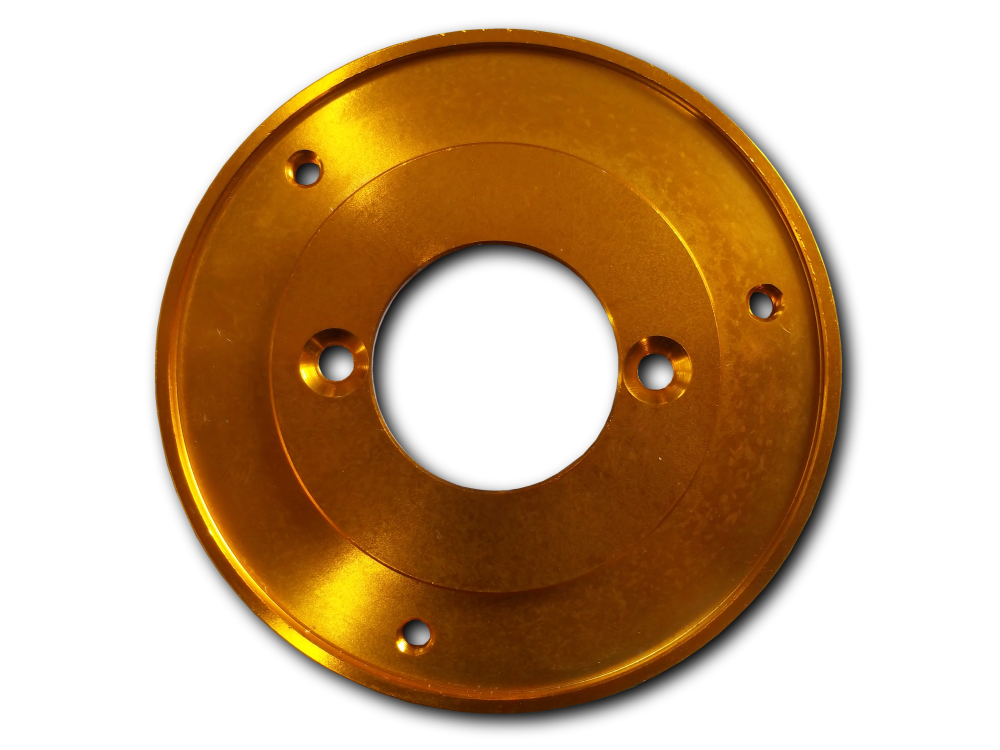

| 210B354 | Piaggio 50 |  |
| 210B082 | Piaggio 125 |  |

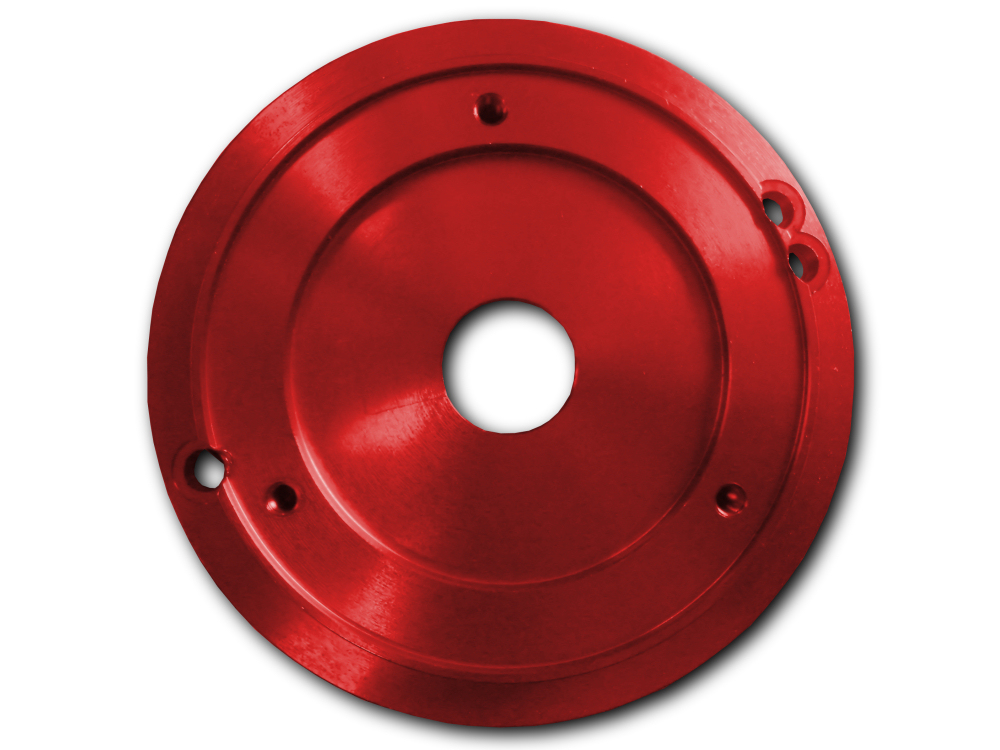

| 210B433 | Piaggio 125 Low |  |
| 210B001 | PitBike |  |
| 210B161 | RD350 (Ø130) |  |

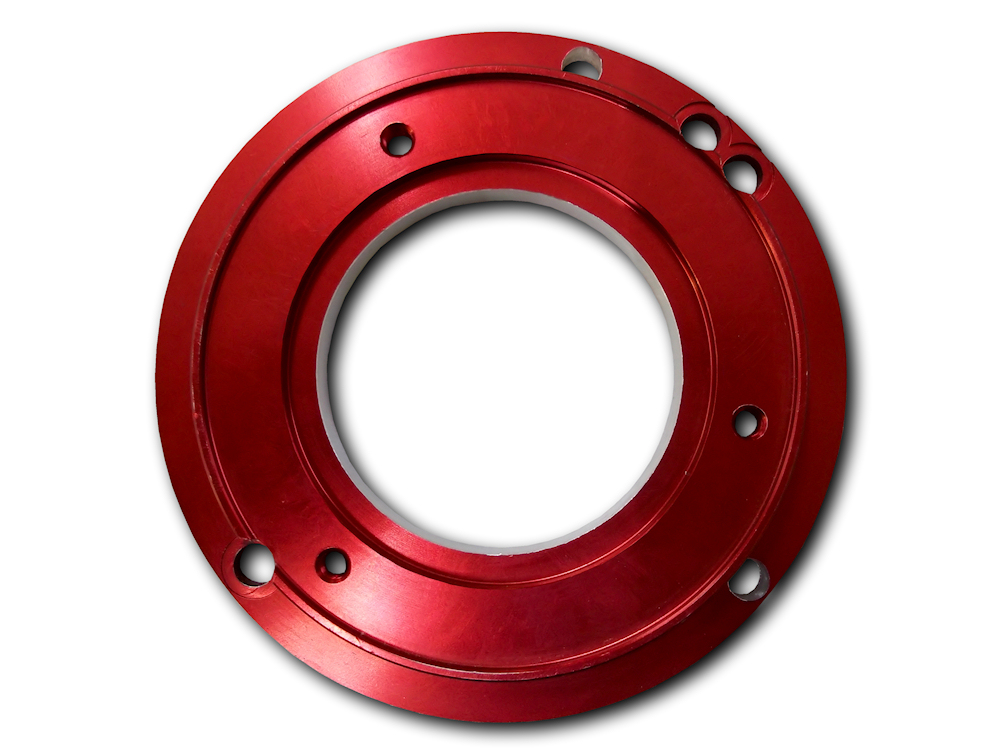

| 210B314 | SM51 |  |
| 210B420 | TRX250 |  |
| 210B081 | Universal Ø108 |  |
| 210B046 | Universal Ø110 |  |
| 210B022 | Universal Ø110 multi |  |

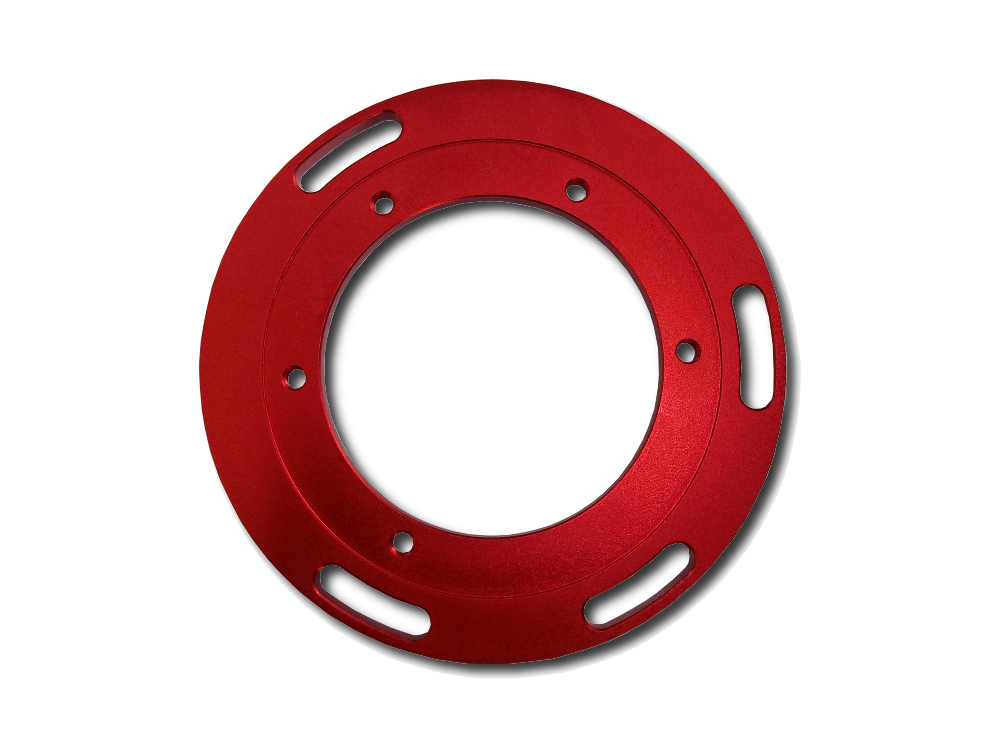

| 210B073 | Universal Ø120 |  |
| 210B103 | Universal Ø130 |  |
| 210B065 | Universal Ø130 high |  |
| 210B020 | Wallaroo |  |
| 210B136 | XL75 |  |

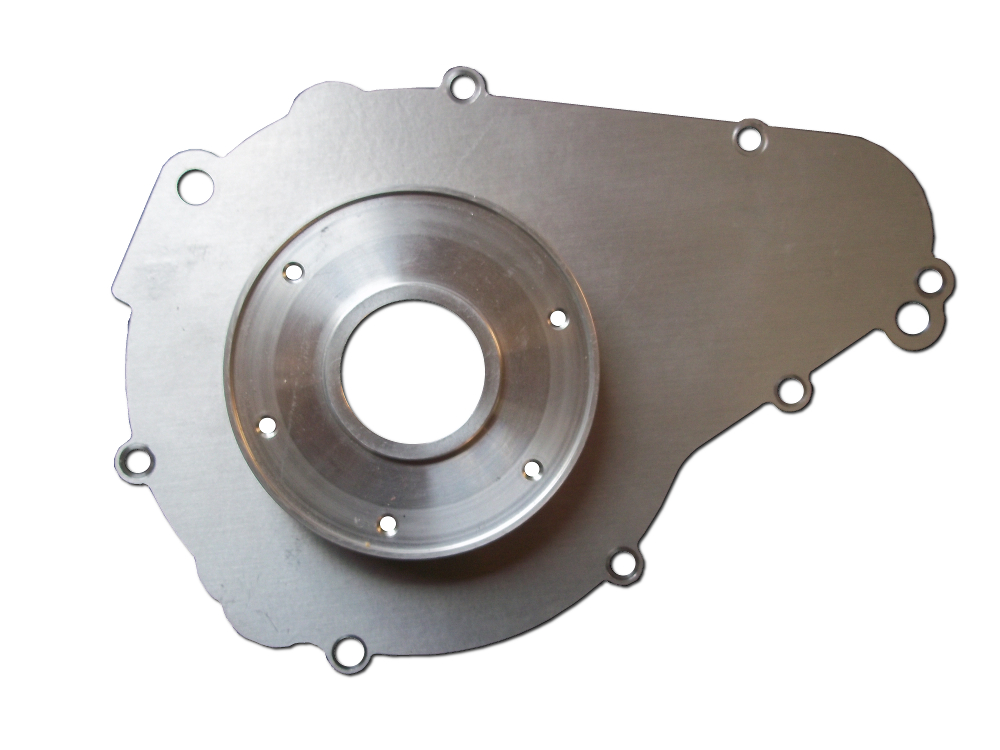

| 210B418 | XS250 |  |

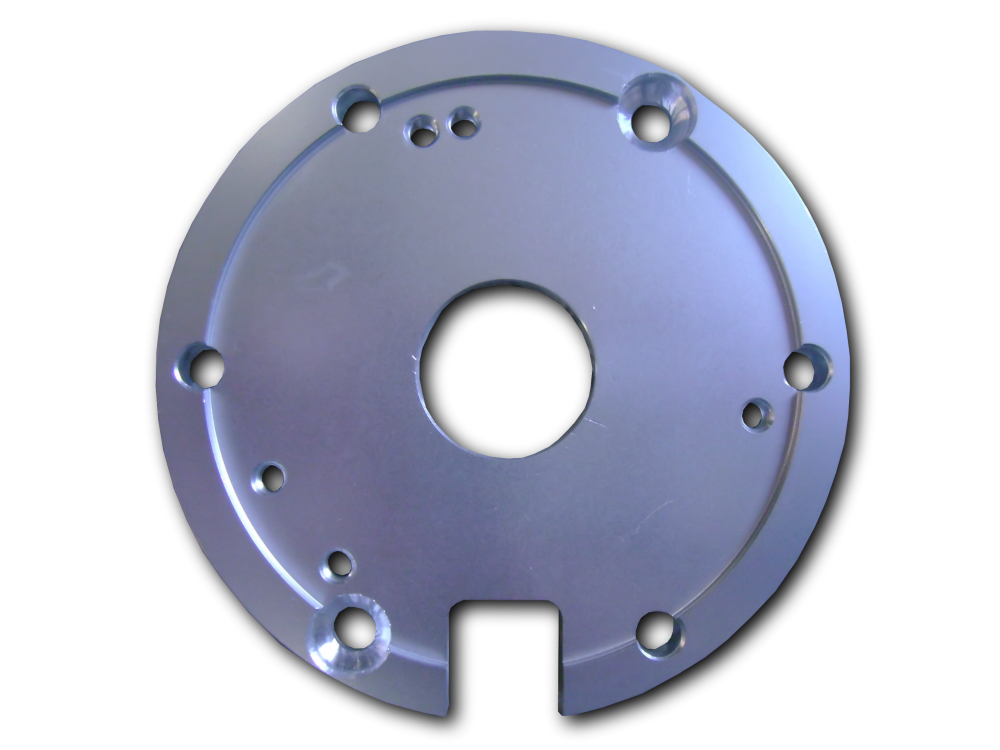

| 210B423 | Yamaha 490 |  |
| 210B404 | Yamahopper B090 to Ø41 |  |
| OTHER PARTS | ||
|---|---|---|
| CODE | DESCRIPTION | |
| High Tension parts | ||
| 210V186 | HT-coil 1 exit |  |
| 210V007 | HT-coil 2 exits |  |
| 210V184 | Ignition mounting kit |  |
| 210V438 | HT-coil mounting kit |  |

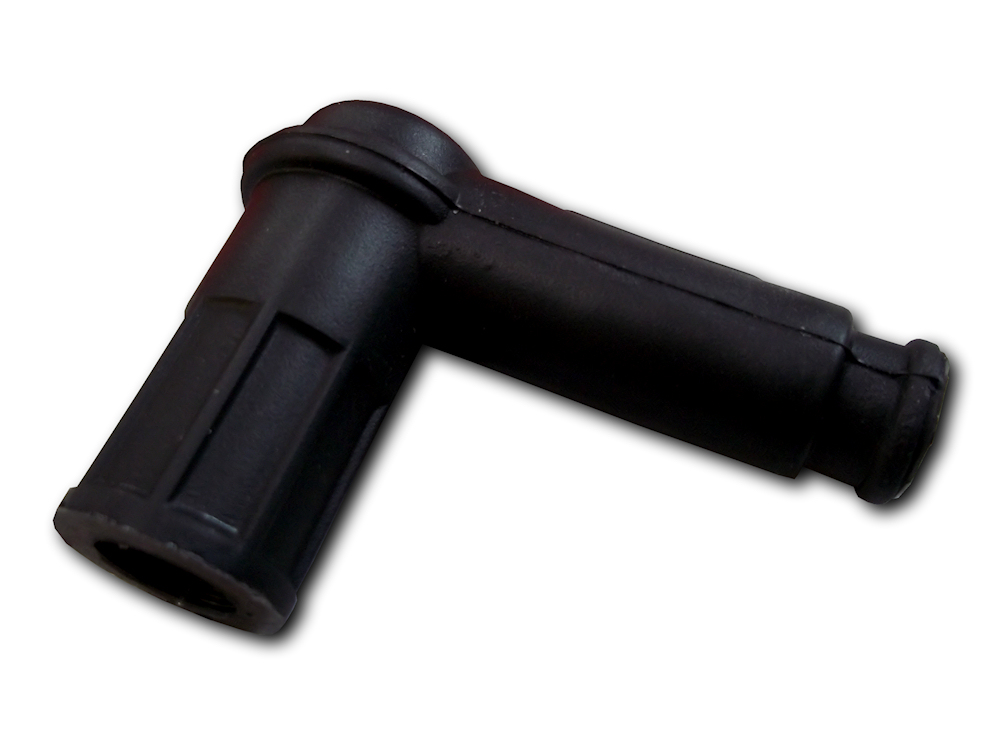

| 210V309 | Spark Plug Cap ‚¬€œ 0Ω (Black) |  |
| 210V310 | Spark Plug Cap ‚¬€œ 5KΩ (Black) |  |

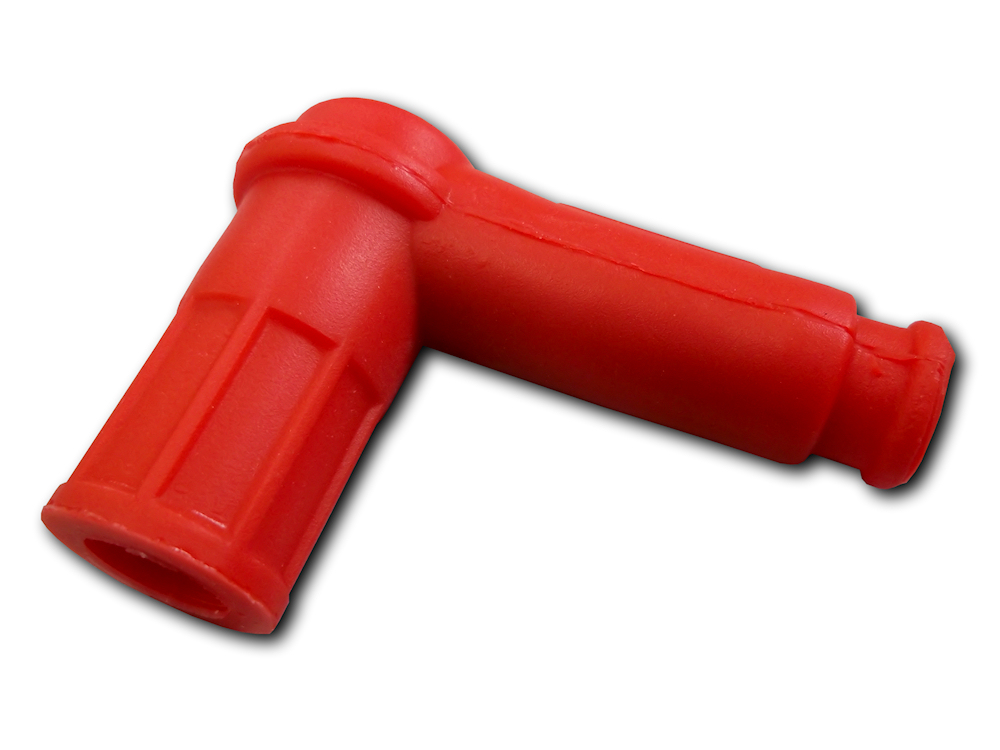

| 210V311 | Spark Plug Cap ‚¬€œ 5KΩ (Red) |  |

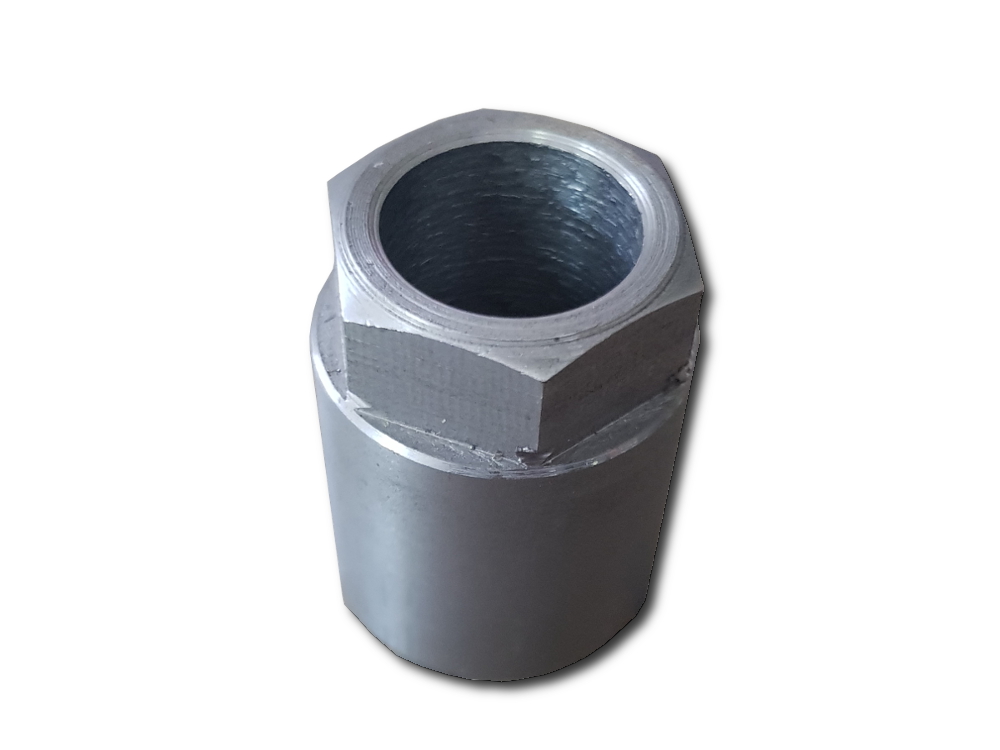

| 210V349 | CZ360 mounting adaptor |  |
| Adaptors | ||
| 210V005 | Fan adaptor plate Wallaroo |  |
| 210V088 | Honda fillring |  |
| 210V171 | Rotor adaptor GT250 (+21mm) |  |

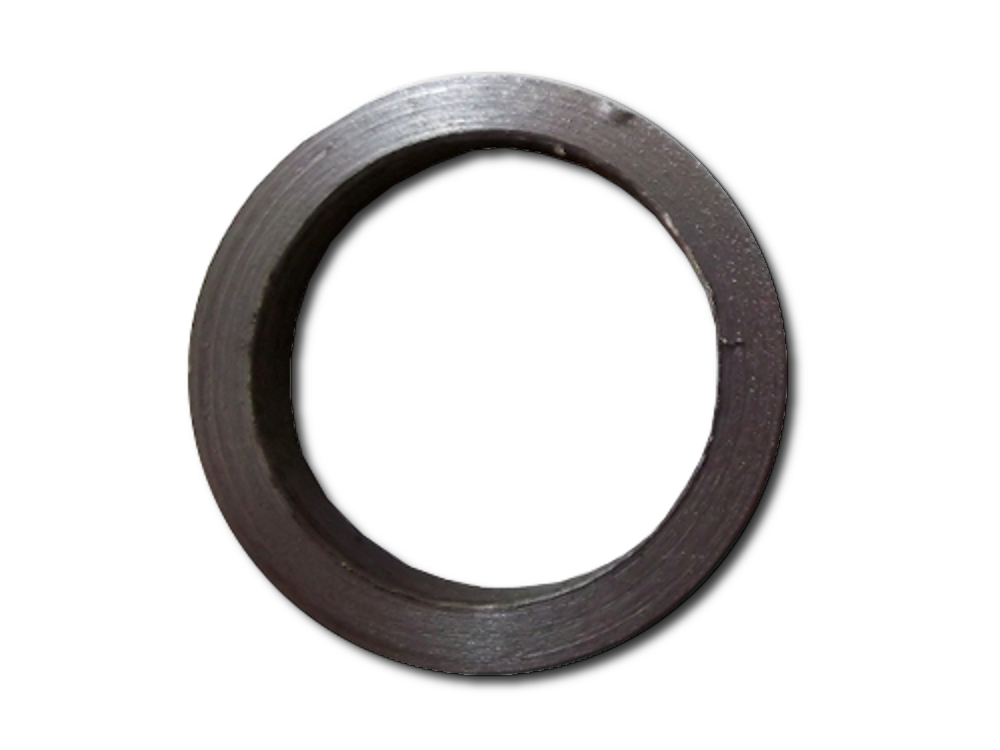

| 210V439 | Rotor filler ring |  |
| 210V452 | stator spacer 5mm |  |
| Cables | ||
| 210V179 | Extension cord (30 cm) |  |
| 210V436 | Curve switch extension cord (60 cm) |  |
| Various accessories | ||
| 210V256 | Fan (universal / Vespa PX - PK ) |  |
| 210V251 | Flywheel puller (M27 | 1mm pitch | left thread) |  |
| 210V257 | Inertia disc, 280 grams (perfectly centered on flywheel) |  |
| 210V301 | Kill switch |  |
| 210V446 | Light switch |  |

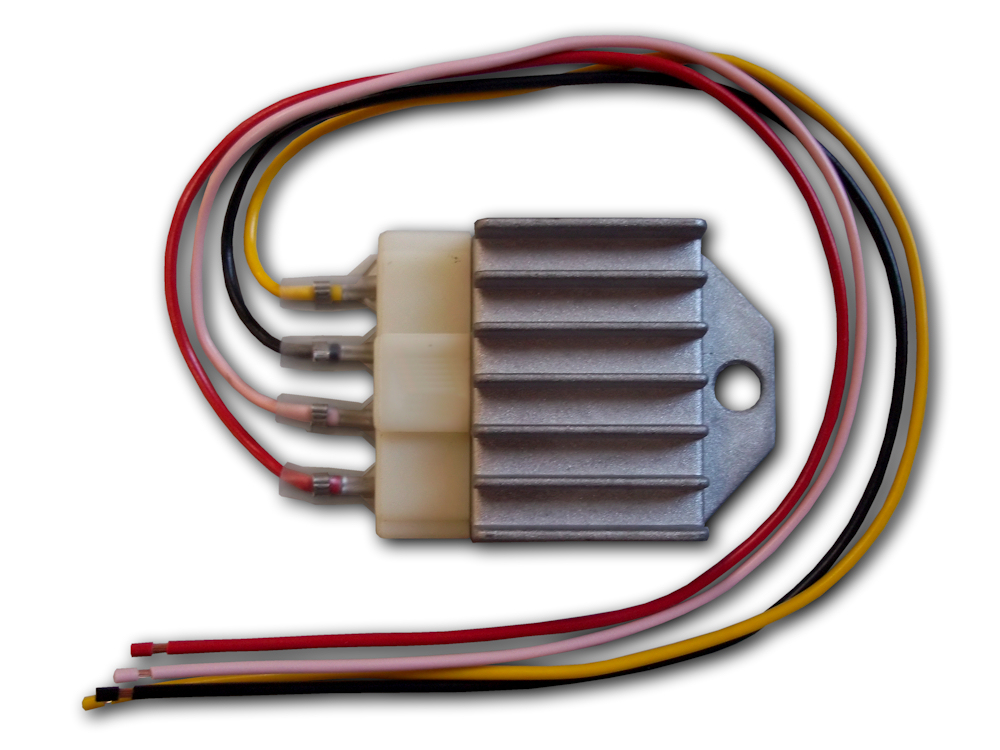

| 210V261 | Regulator / Rectifier |  |
| 210V064 | Switchbutton (for 2 curves selection) |  |
| Bolt kit | ||
| 210M364 | 3x M5 x 15mm |  |

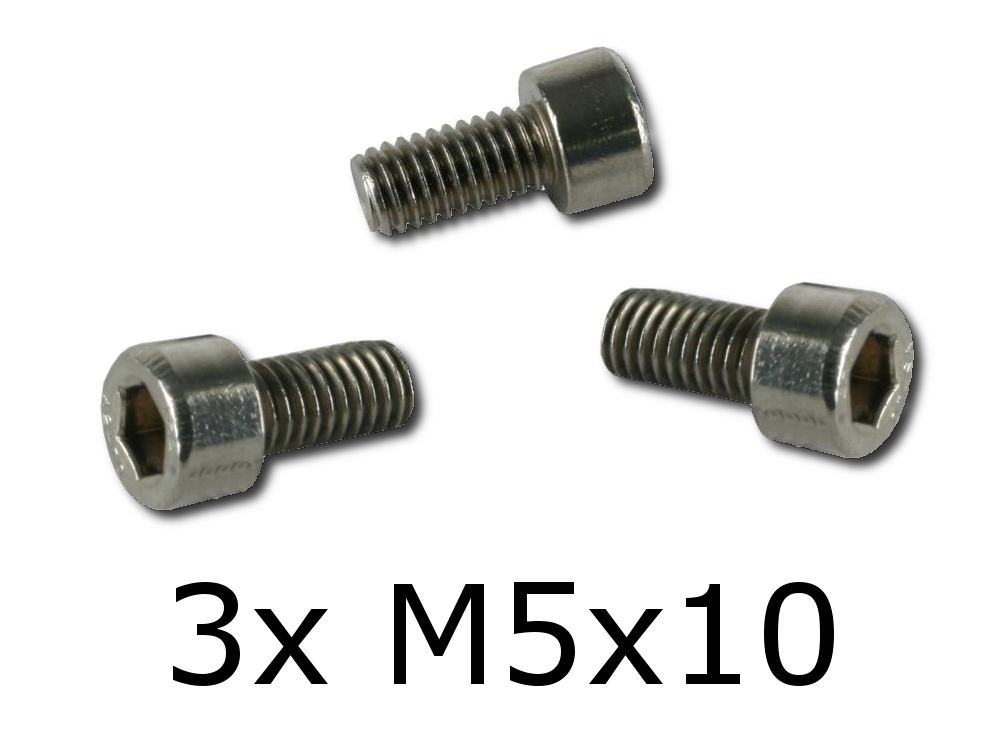

| 210M360 | 3x M5 x 10mm |  |
