HPI | Horse Power Ignition

ROTORS
CODEDESCRIPTION    A   B C   D   E   F
068R327Tiger Cub 115.85mm-----
068R400TZ750 17.00mm-----
068R079BSA19.00mm-----
068R328Tiger Cub 2 with keyway19.00mm-----
068R147A1R20.00mm-----
068R234MBK15.10mm-3.0°--12.19mm
068R317Montesa21.60mm-3.0°--18.50mm
068R351CZ 36024.00mm-3.0°---
068R149Husqvarna 25017.00mm-4.0°--13.57mm
068R357Husqvarna 43017.90mm-4.0°--14.19mm
068R038KTM18.80mm-4.0°--15.19mm
068R170Maico Small20.00mm-4.0°--16.27mm
068R150Maico Big21.00mm-4.0°--17.12mm
068R060Bultaco22.00mm-4.0°--18.56mm
068R030Wallaroo14.20mm8mm5.7°---
068R032Minarelli15.20mm6mm5.7°---
068R077YZ15.40mm-5.7°--11.32mm
068R031Piaggio16.00mm10mm5.7°---
068R034Puch Maxi16.25mm-5.7°--11.42mm
068R218Ciao17.00mm-5.7°4.5mm33mm11.92mm
068R061Street Magic17.05mm-5.7°--12.07mm
068R142XR7517.05mm-5.7°9.00m17.1012.07mm
068R036Suzuki17.55mm-5.7°--12.00mm
068R037TM18.60mm-5.7°--13.56mm
068R225CB50019.20mm-5.7°--14.00mm
068R035NSR 20.15mm-5.7°--15.31mm
068R078Aprilia RS21.25mm-5.7°--16.20mm
068R122CB7221.90mm-5.7°--17.16mm
068R246TZR25023.20mm-5.7°--18.37mm
068R145CB75024.00mm-5.7°--18.89mm

STATORS
CODEDESCRIPTION
Single cylinder (red)
068S100R360Ω | 360° | ----
068S190R360Ω | 360° | Ø90
068S194R360Ω | 360° | Ø94
068S219R360Ω | 360° | Ciao (Ø70 to 89,5)
Single cylinder (black)

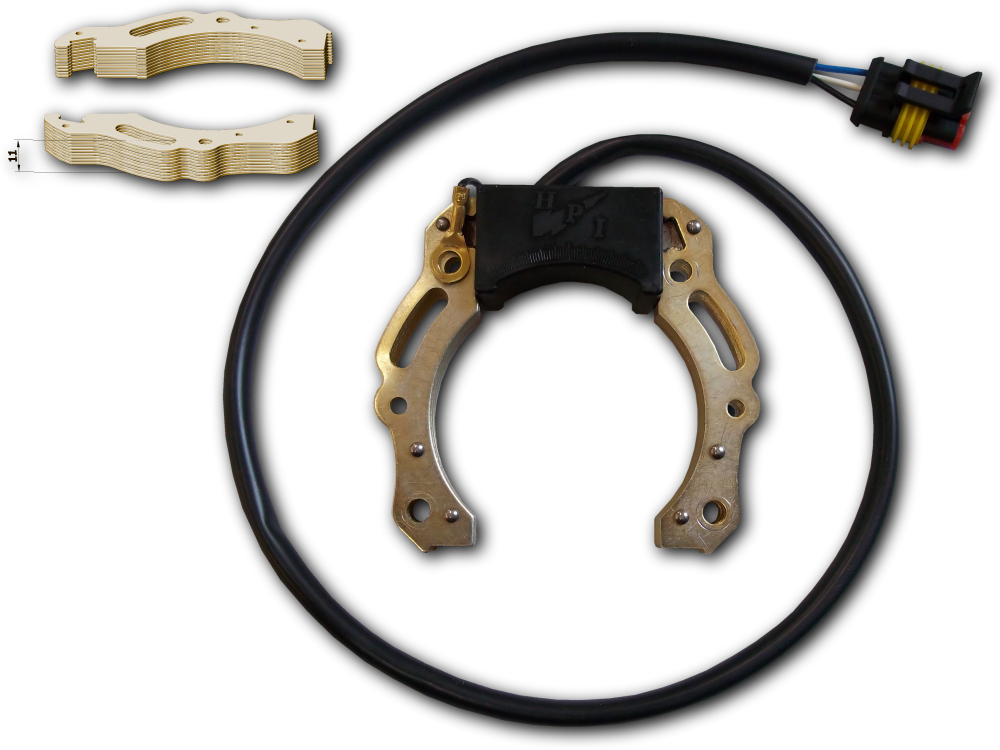

068S100B360Ω | 360° | ---- (Black, Low stack)
068S190B360Ω | 360° | Ø90 (Black, Low stack)
068S194B360Ω | 360° | Ø94 (Black, Low stack)
068S100B-H360Ω | 360° | ---- (Black, High stack)

068S190B-H360Ω | 360° | Ø90 (Black, High stack)


068S194B-H360Ω | 360° | Ø94 (Black, High stack)



068S174B360Ω | 360° | XR250 (Black, Low stack)




068S289B360Ω | 360° | Universal direct Ø108 (Black, Low stack)





068S258B360Ω | 360° | Universal direct Ø110 low plate (Black, Low stack)






068S258B-H360Ω | 360° | Universal direct Ø110 low plate (Black, High stack)







068S391B360Ω | 360° | Universal direct Ø110 low plate (Black, Low stack, Narrow)








068S434B360Ω | 360° | Universal direct Ø110 high plate (Black, Low stack)









068S434B-H360Ω | 360° | Universal direct Ø110 high plate (Black, High stack)










068S459B360Ω | 360° | direct Ø110 SEM (Black, Low stack)











068S424B360Ω | 360° | Universal direct Ø115 (Black, Low stack)












068S458B360Ω | 360° | Universal direct Ø130 (Black, Low stack)













068S458B-H360Ω | 360° | Universal direct Ø130 (Black, High stack)














068S329B360Ω | 360° | Tiger Cub (Black, Low stack)















068S109B360Ω | 360° | BSA (Black, Low stack)
















068S455R180° | Honda CR (Red, Low stack)

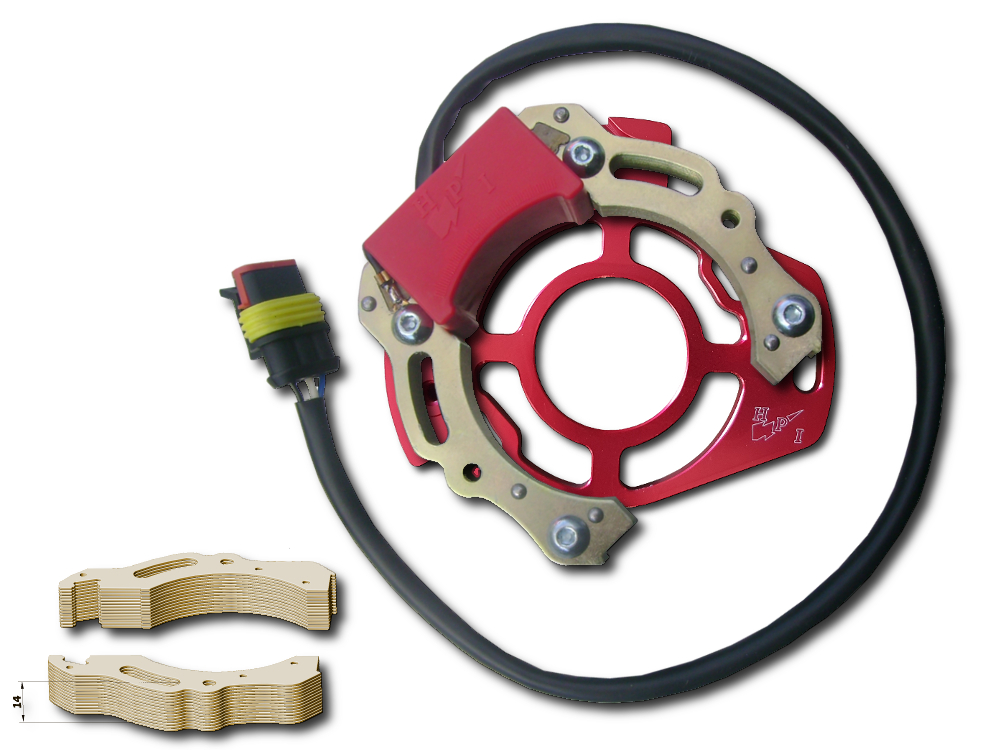

068S455R-H180° | Honda CR (Red, High stack)


















Single cylinder 80 Ohm (Yellow)
068S890Y80Ω | 360° | Ø90 | (Yellow, Low stack)




















068S894Y80Ω | 360° | Ø94 | (Yellow, Low stack)





















Twin/four cylinder
068S200B360Ω | 180° | ----

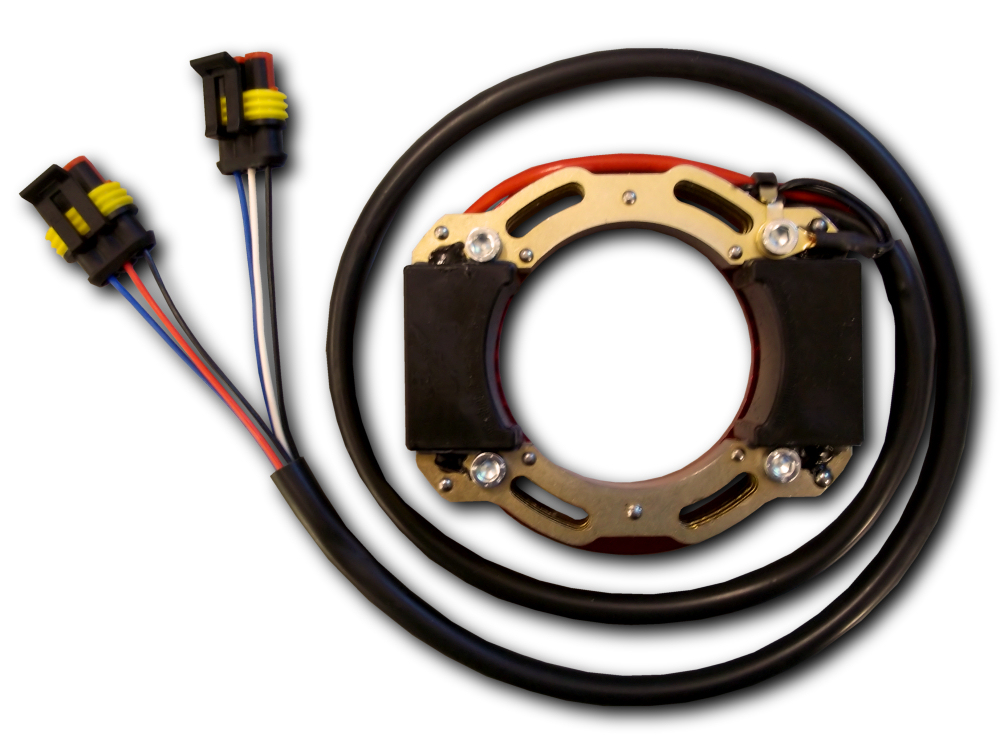

068S290B360Ω | 180° | Ø90
























068S294B360Ω | 180° | Ø94

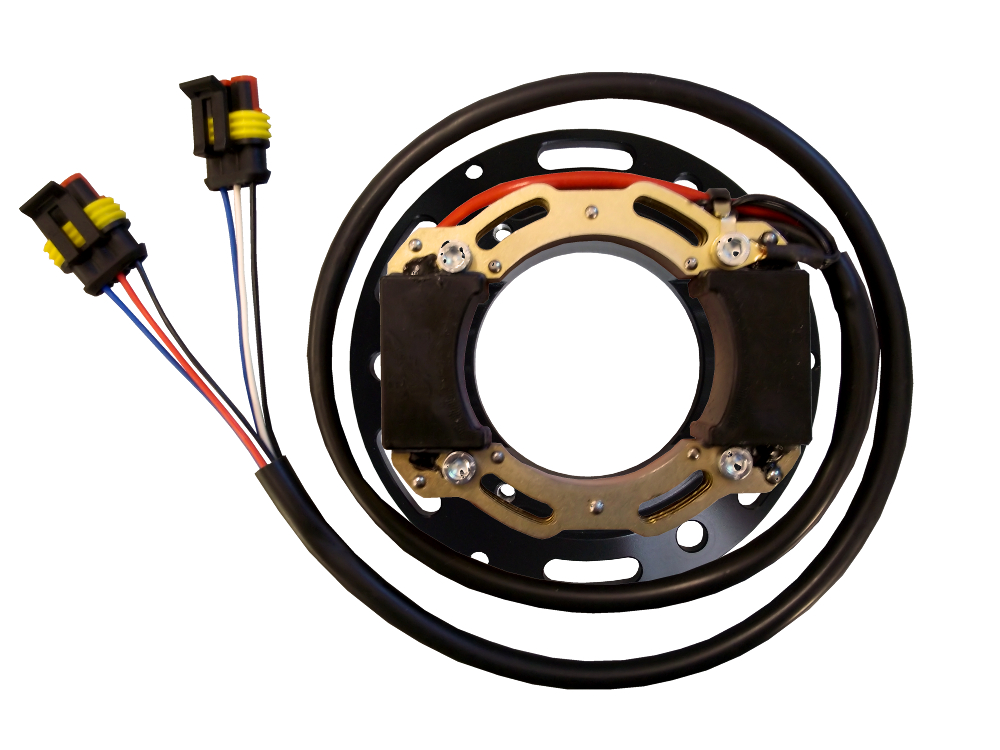

068S303B360Ω | 180° | Ø130


























068S316B360Ω | 180° | Benelli (Ø94 to 93)


























068S229B360Ω | 180° | TZR250 (Ø65 to 70)


























068S109B-H360Ω | 360° | BSA (Black, High stack)


























068S209B-H360Ω | 360° | BMW (Black, High stack)


























Three cylinder
068S300B360Ω | 120° | ----


























068S390B360Ω | 120° | Ø90


























068S394B360Ω | 120° | Ø94


























068S318B360Ω | 120° | GT750 (RH)



























CDI-UNITS
(Click a CDI to see the available options)
CODEDESCRIPTION
Single cylinder
068C002Analogue CDI - Curve 002

068C068Analogue CDI - Curve 068

068C130Analogue CDI - Curve 130

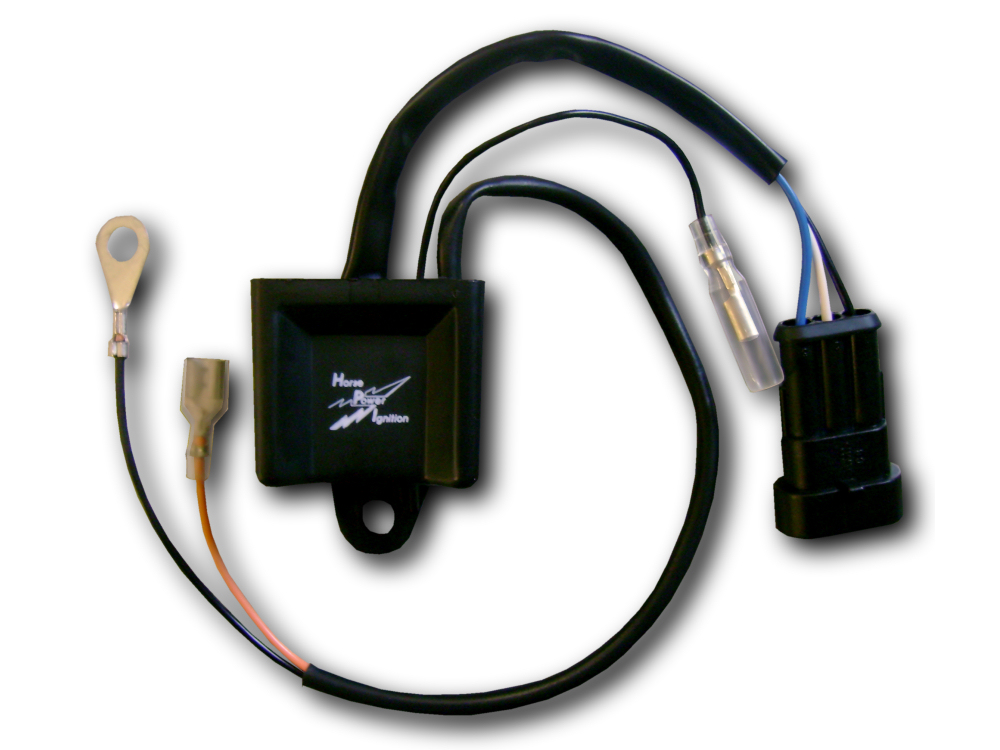

068C297Analogue CDI - Curve 297

068C042Digital CDI - 2 stroke

068C041Digital CDI - 4 stroke

068C242Digital CDI - 2 stroke

068C241Digital CDI - 4 stroke


068C342Digital CDI - 2 stroke



068C341Digital CDI - 4 stroke




Single cylinder with 2 HT-coil exits
068C106Analogue CDI - C068 curve - 2 HT exits






068C107Digital CDI - 2 stroke - 2 HT exits







068C108Digital CDI - 4 stroke - 2 HT exits








Twin/Four cylinder with 2 HT-coil exits
068C206Analogue CDI - C130 curve - 2 HT exits

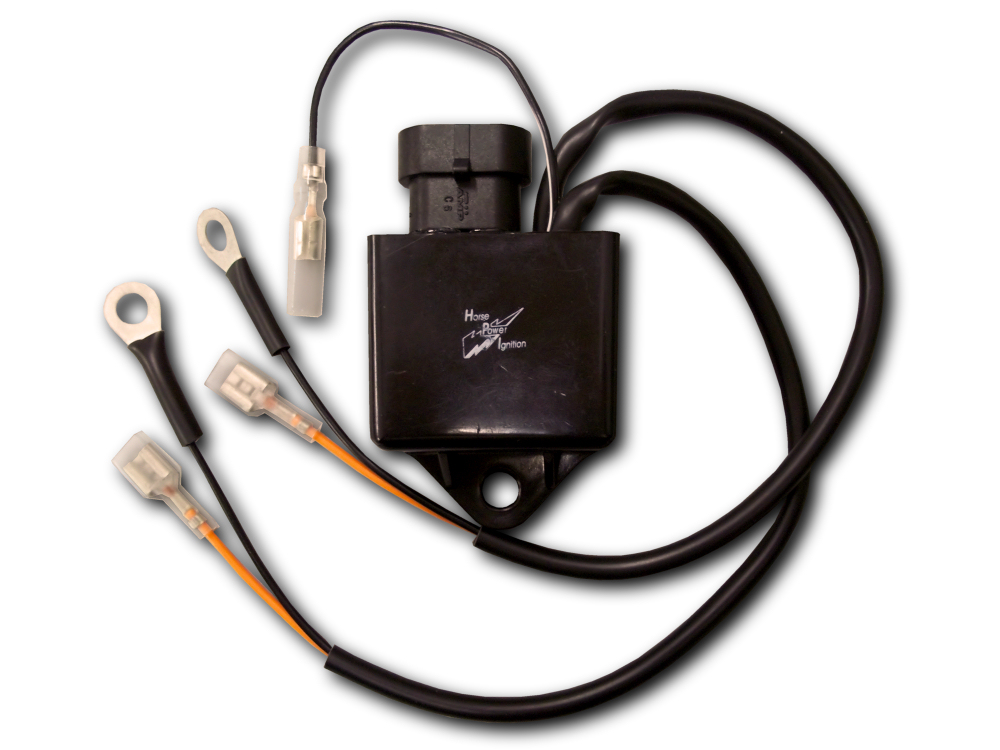

068C207Digital CDI - 2 stroke - 2 HT exits










068C208Digital CDI - 4 stroke - 2 HT exits










Special CDIs
068C165Digital CDI - 1 cylinder - 4 Stroke w. Adjustable Rev-Limiter










068C265Digital CDI - 2 cylinder - 4 Stroke w. Adjustable Rev-Limiter

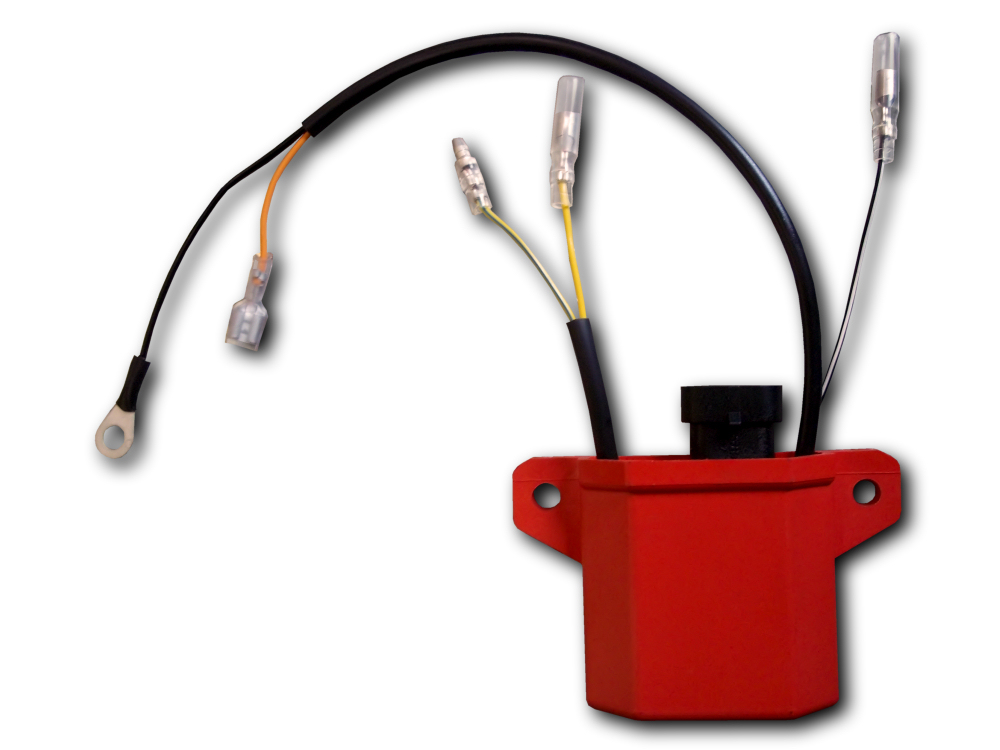

068C842Digital CDI 80 Ohm










068C880Analogue CDI 80 Ohm











BASEPLATES
CODEDESCRIPTION
068B224Aermacchi
068B080Aprilia RS / Gilera GPZ125
068B217Bultaco (NSR to 110)

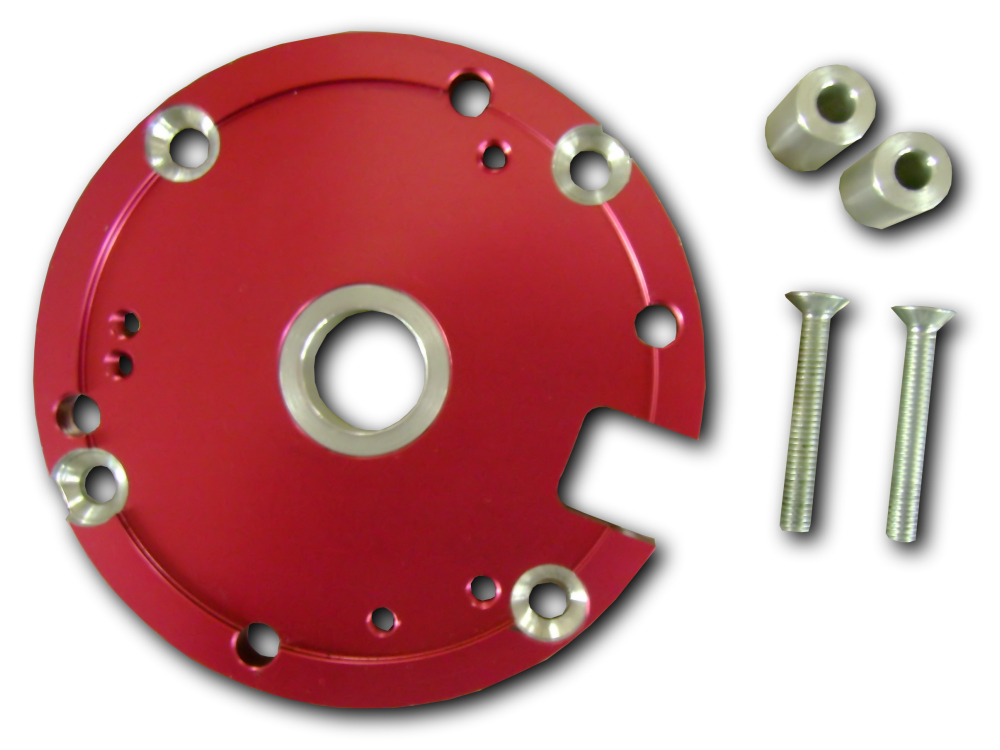

068B175Camino
068B123CB72
068B162CB350
068B226CB400F
068B163CB450
068B220CB500
068B003CB750

068B054CB750K


068B287CR80



068B091CR250R




068B125CRF100





068B259CZ 360






068B212GS1000







068B087GT550/GT750 (Left Hand Fitting)








068B358Husqvarna









068B232Italjet










068B449KLX250 (Ø110)











068B243KTM 65SX

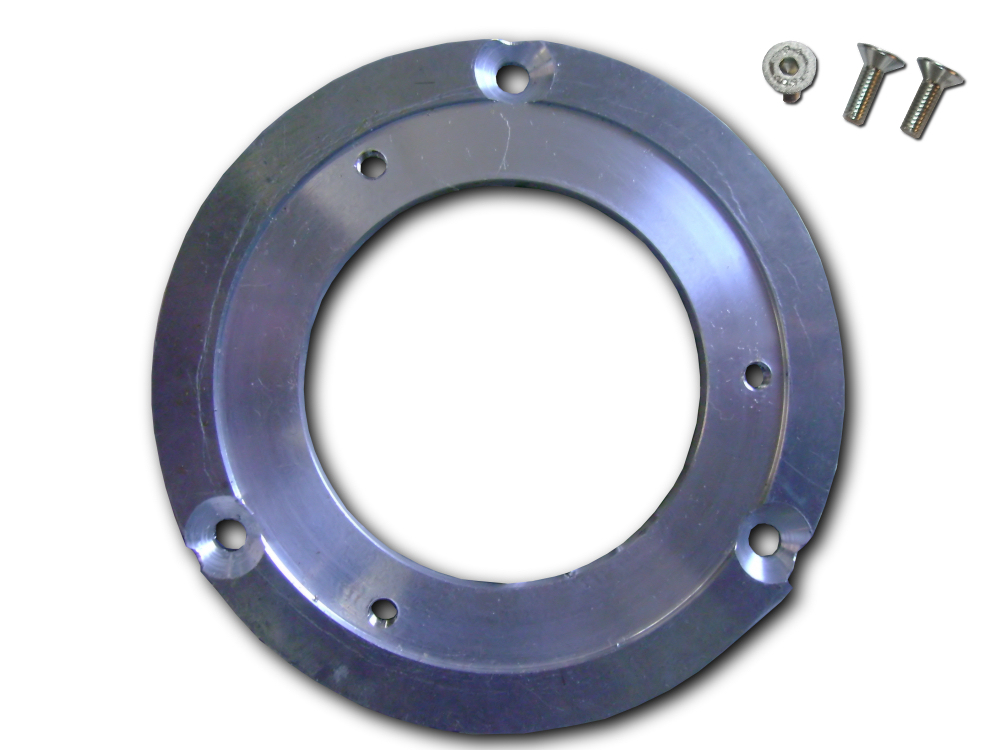

068B151KTM 250MX













068B114KTM 250SX














068B120KX125 (Ø115)

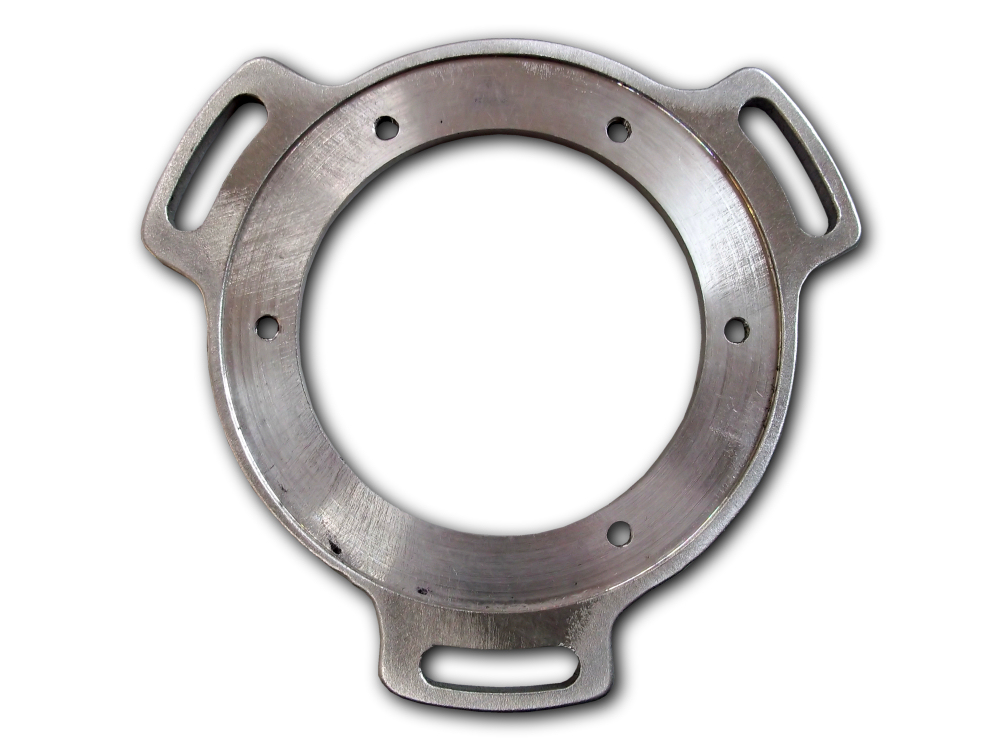

068B293Lambretta 175

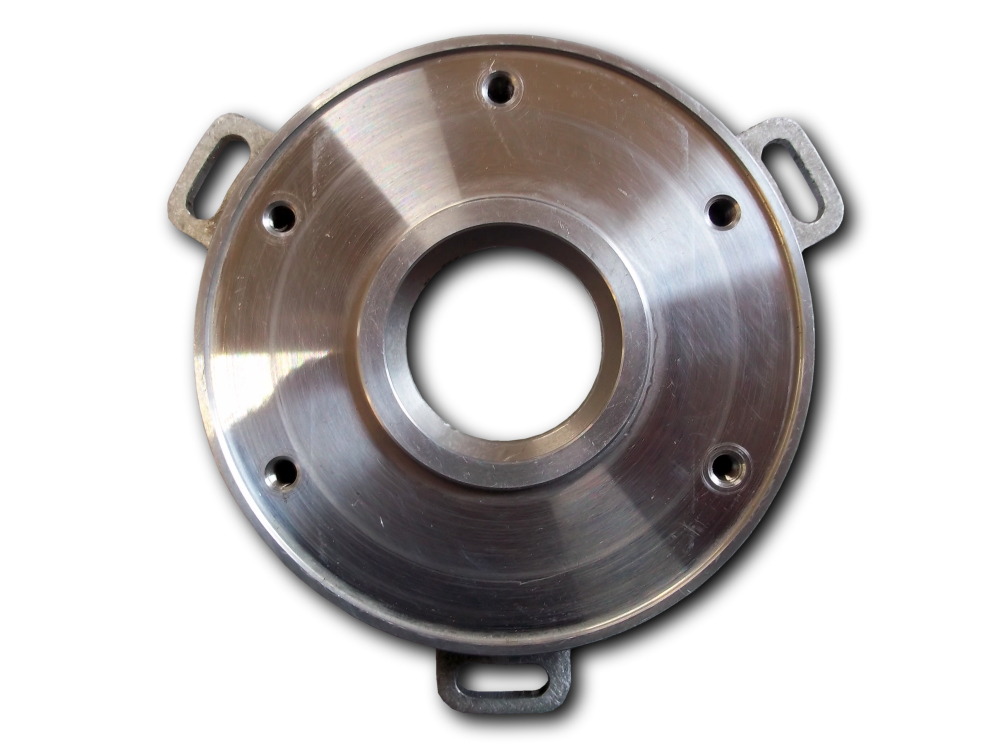

068B353Lambretta GP

















068B169Maico High


















068B409Maico Low



















068B275MBK

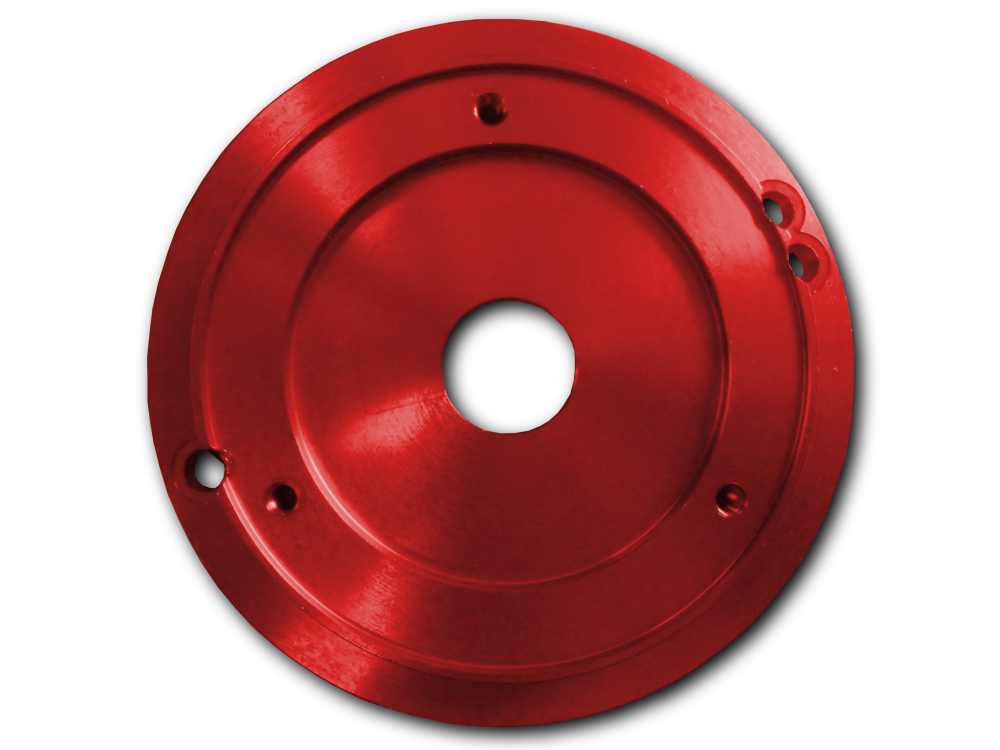

068B019Minarelli





















068B334Minarelli Low






















068B105Mito 125























068B074Morini 50 (Wallaroo + bus)
























068B237Morini 125

























068B239Morini 175


























068B018NSR / MTX



























068B021Piaggio 50




























068B082Piaggio 125





























068B001PitBike






























068B248Puch MX125































068B161RD350 (Ø130)
































068B230RD500

































068B245RT125


































068B422Suzuki 100-125cc 73-76 Ø115



































068B420TRX250




































068B166TT (Ø140)

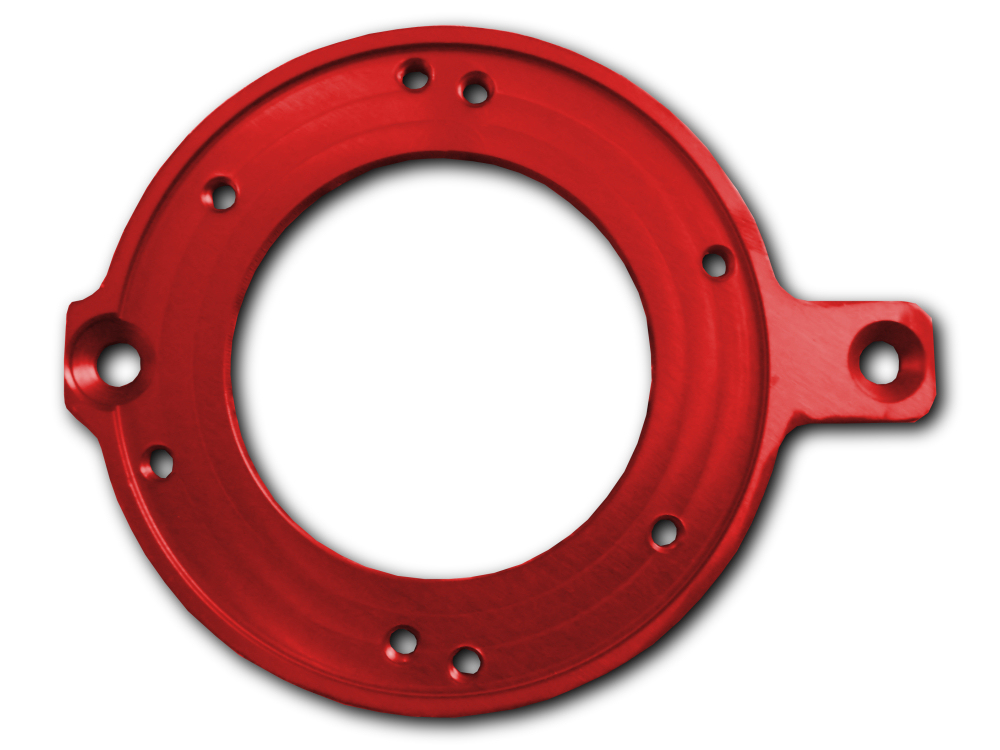

068B164TZ250






































068B269TZ500







































068B399TZ750








































068B398TZR250









































068B090Universal Ø105










































068B081Universal Ø108











































068B046Universal Ø110












































068B022Universal Ø110 multi













































068B073Universal Ø120














































068B103Universal Ø130















































068B065Universal Ø130 high















































068B020Wallaroo















































068B136XL75















































068B418XS250















































068B083XS650 (Ø130)















































068B321XT250















































068B423Yamaha 490















































068B213Z1000
















































OTHER PARTS
CODEDESCRIPTION
068V186HT-coil 1 exit - black
068V007HT-coil 2 exits
068V184Igntion mounting kit
068V438HT-coil mounting kit
068V330HTCDI1
068V309Spark Plug Cap ‚¬€œ 0Ω (Black)
068V310Spark Plug Cap ‚¬€œ 5KΩ (Black)

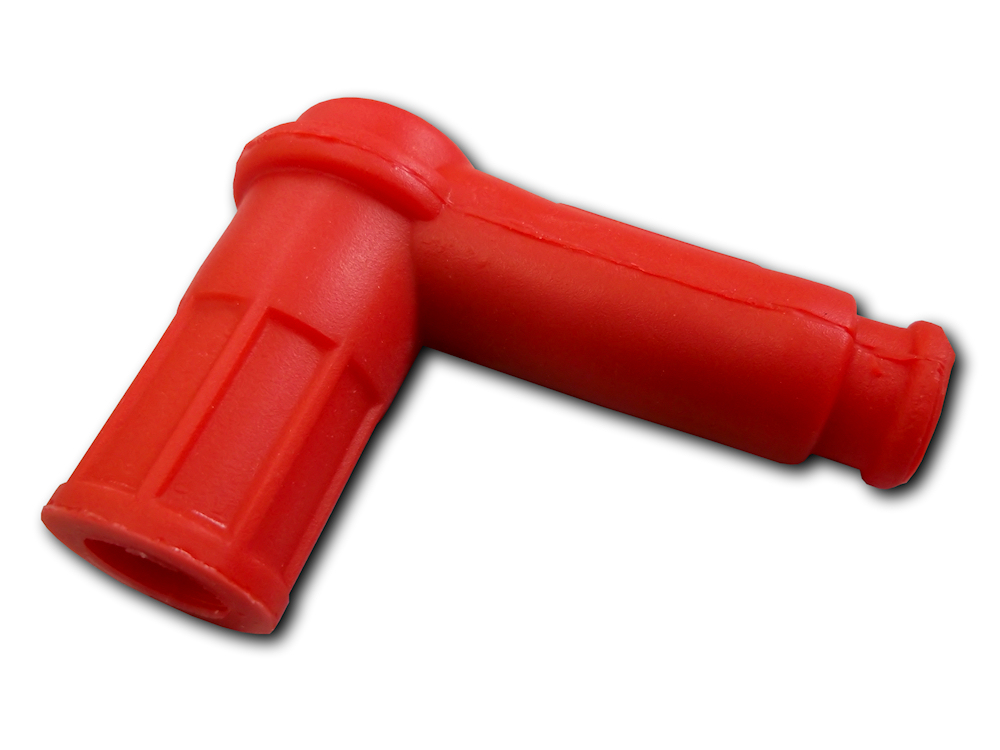

068V311Spark Plug Cap ‚¬€œ 5KΩ (Red)
Adaptors
068V023Fan adaptor plate Minarelli

068V075Fan adaptor plate universal


068V005Fan adaptor plate Wallaroo



068V171Rotor adaptor GT250 (+21mm)




068V092Rotor adaptor GT750 (LH) + screw





068V325Rotor adaptor Triumph Tiger Cub






068V439Rotor filler ring







068V178Rotor aligner XR250








068V270Stator adaptor Ø94 +5mm (shim - to raise the stator)









068V302Stator adaptor Ø94 +16.5mm (shim - to raise the stator)










068V088Honda fillring











Cables
068V179Extension cord (30 cm)













068V436Curve switch extension cord (60 cm)














068V180Divarication for Pitsch Kröber RN22 rev-counters















068V182Y-Branch for killswitch - 2 cylinder
















068V183Y-Branch for killswitch - 3 cylinder

















068V332Y-Branch for 2 curve switch - 2 cylinder


















068V333Y-Branch for 2 curve switch - 3 cylinder

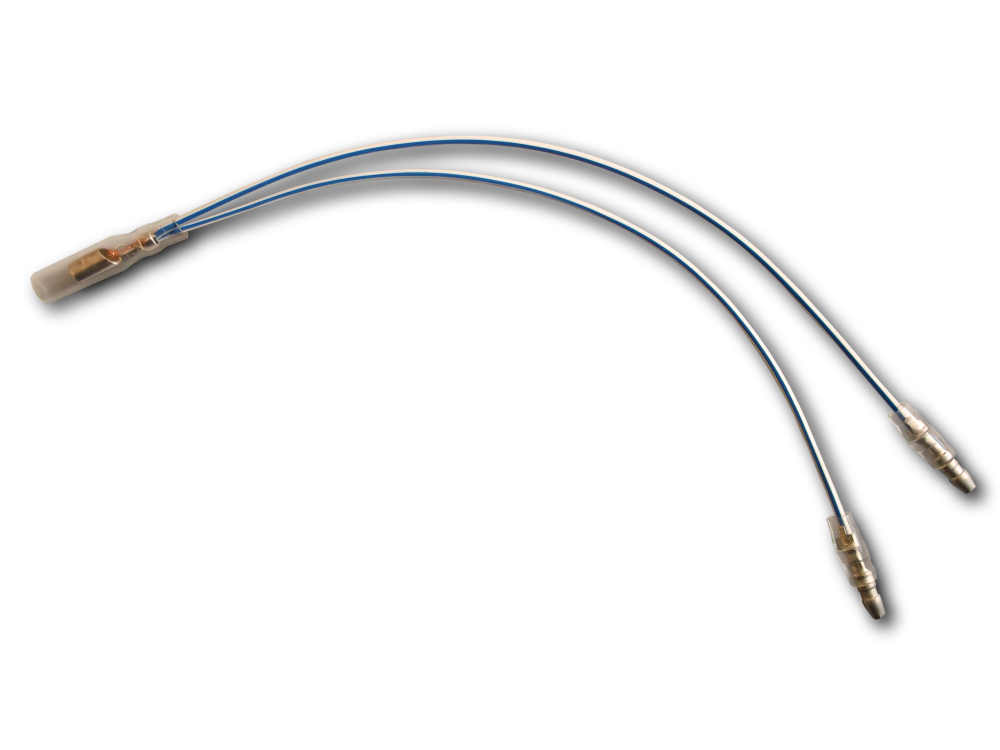

068V235Y-Branch for AETC engines




















068V185Y-Branch for YPVS engines





















TuneBox
068V043Interface and software for all digital HPI CDI's























Various accessories
068V101Inertia disc, 300 grams, RVS

























068V301Kill switch


























068V446Light switch



























068V024Light coil for innerrotor type 10W 2004




























068V025Light coil for innerrotor type 10W 2003

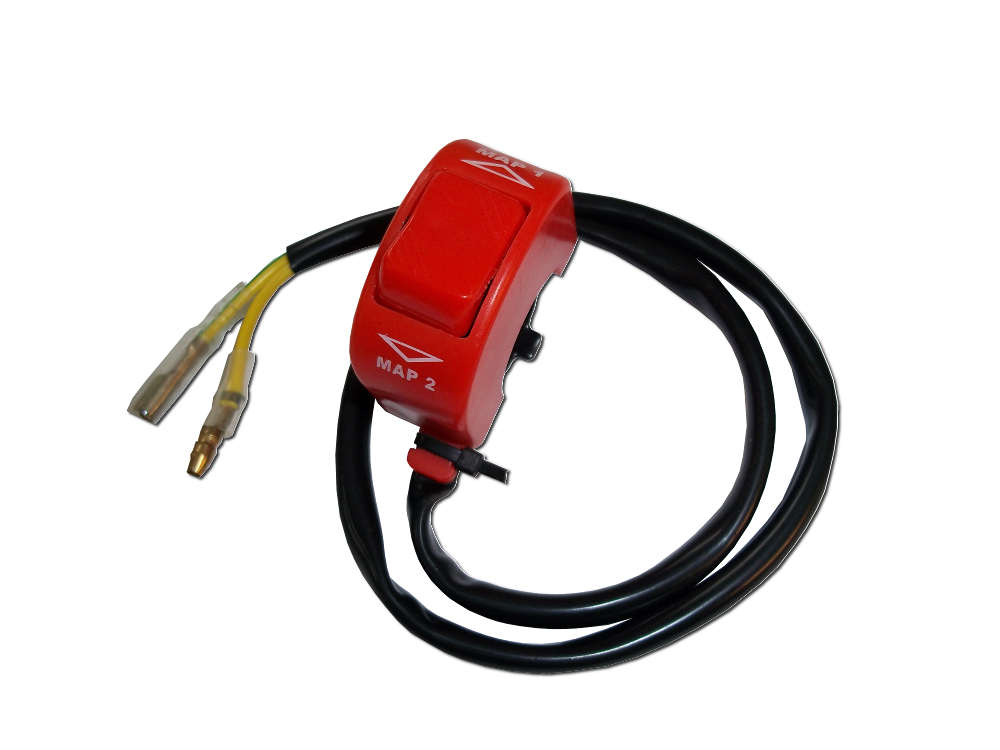

068V064Switchbutton (for 2 curves selection)

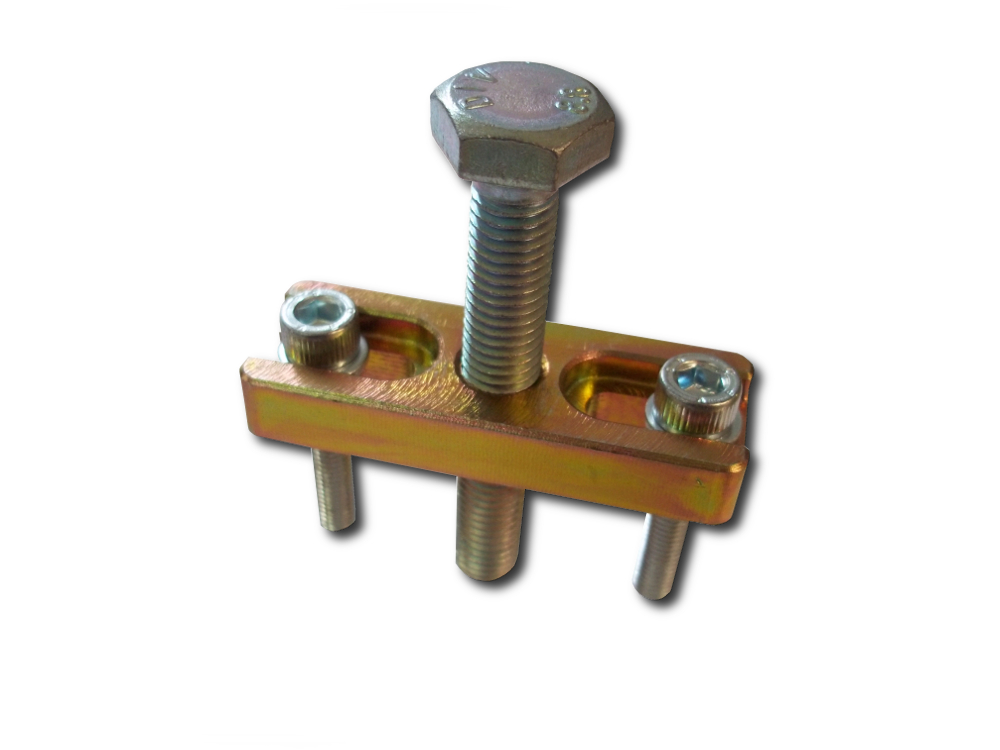

068V262Flywheel puller




























068V442HT extention cord




























Bolt kit
068M3622x M5 x 15mm




























068M3613x M5 x 15mm sunken

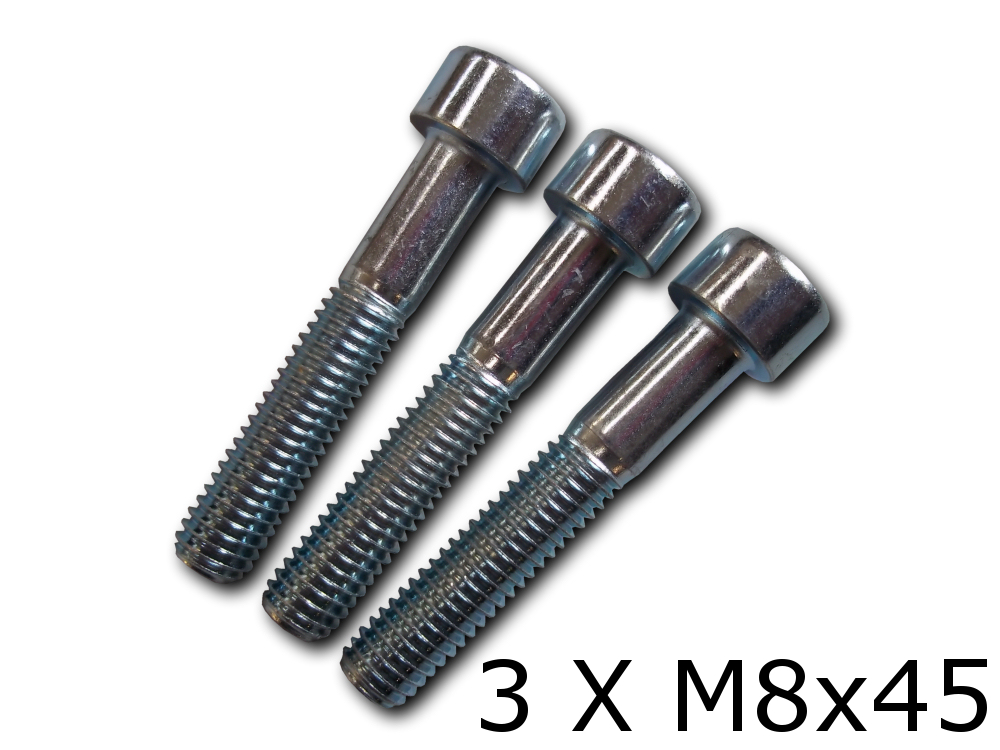

068M3633x M8 x 45mm
